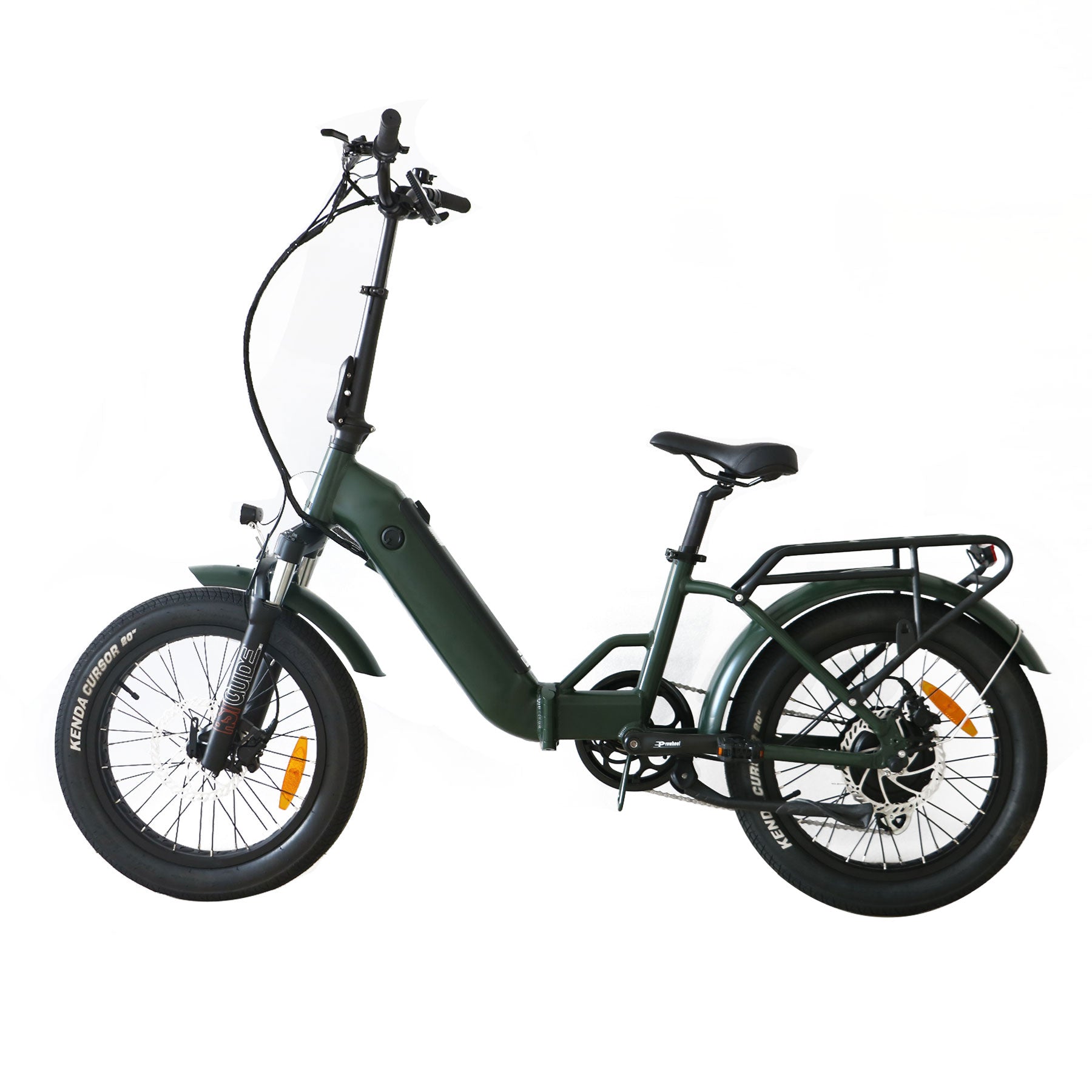

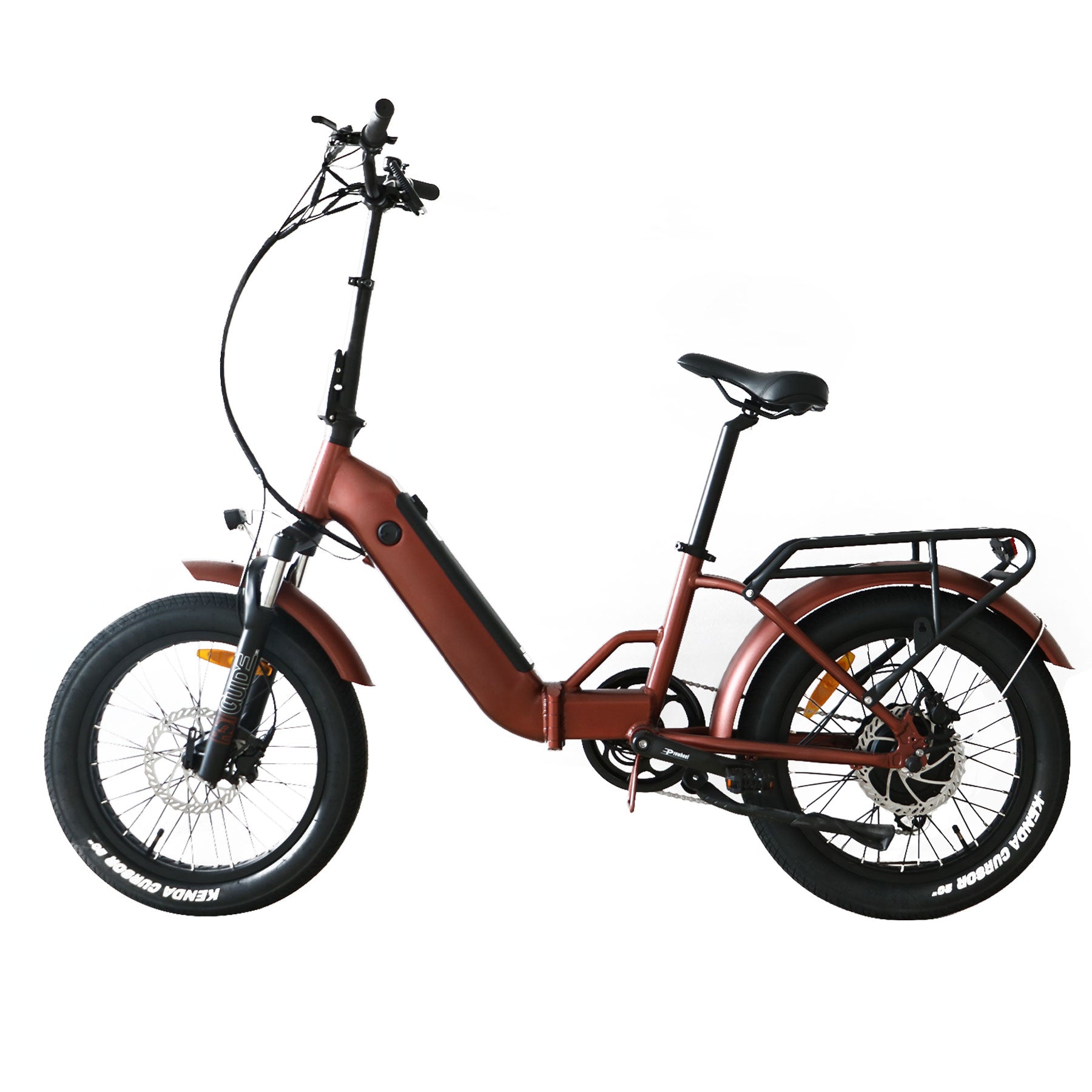

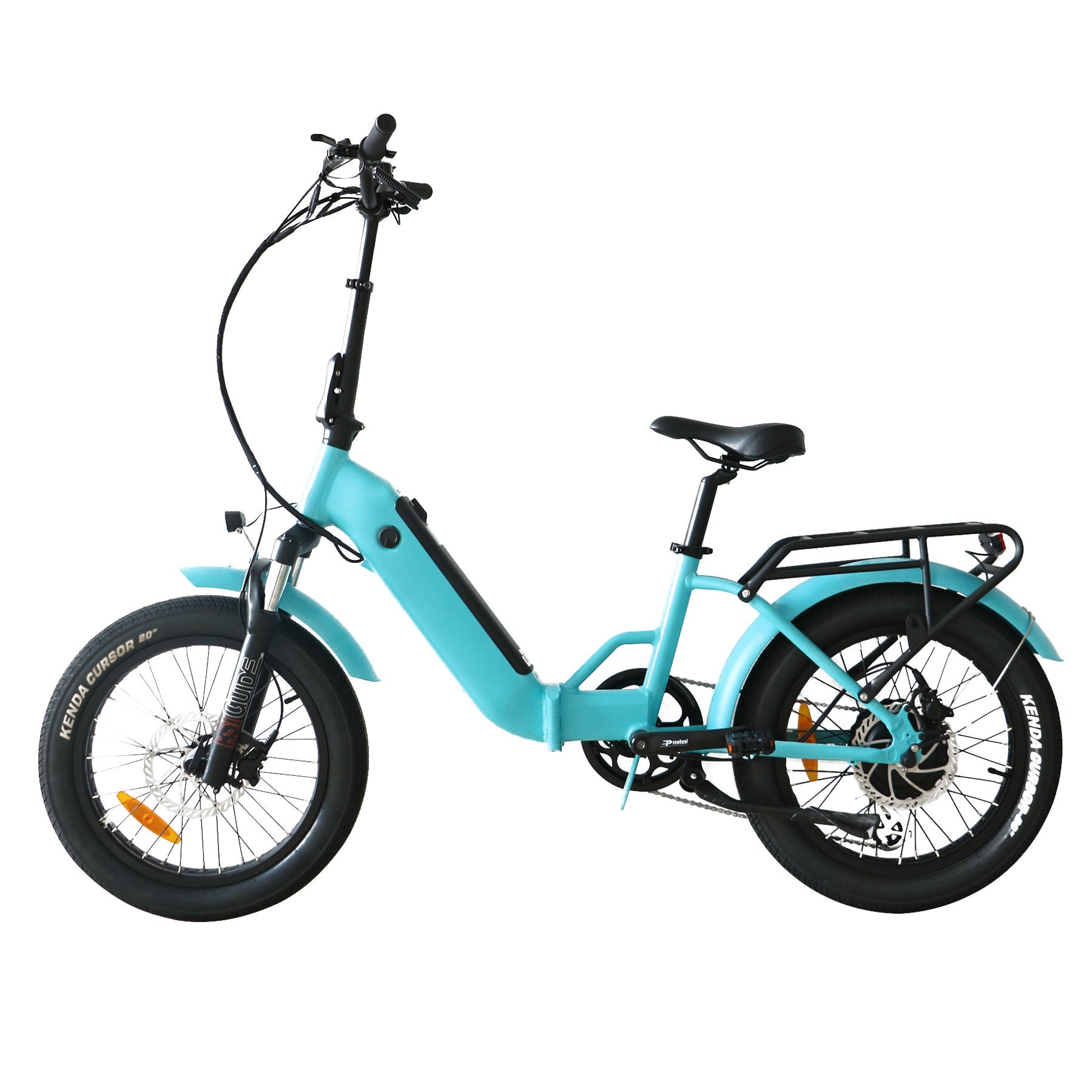

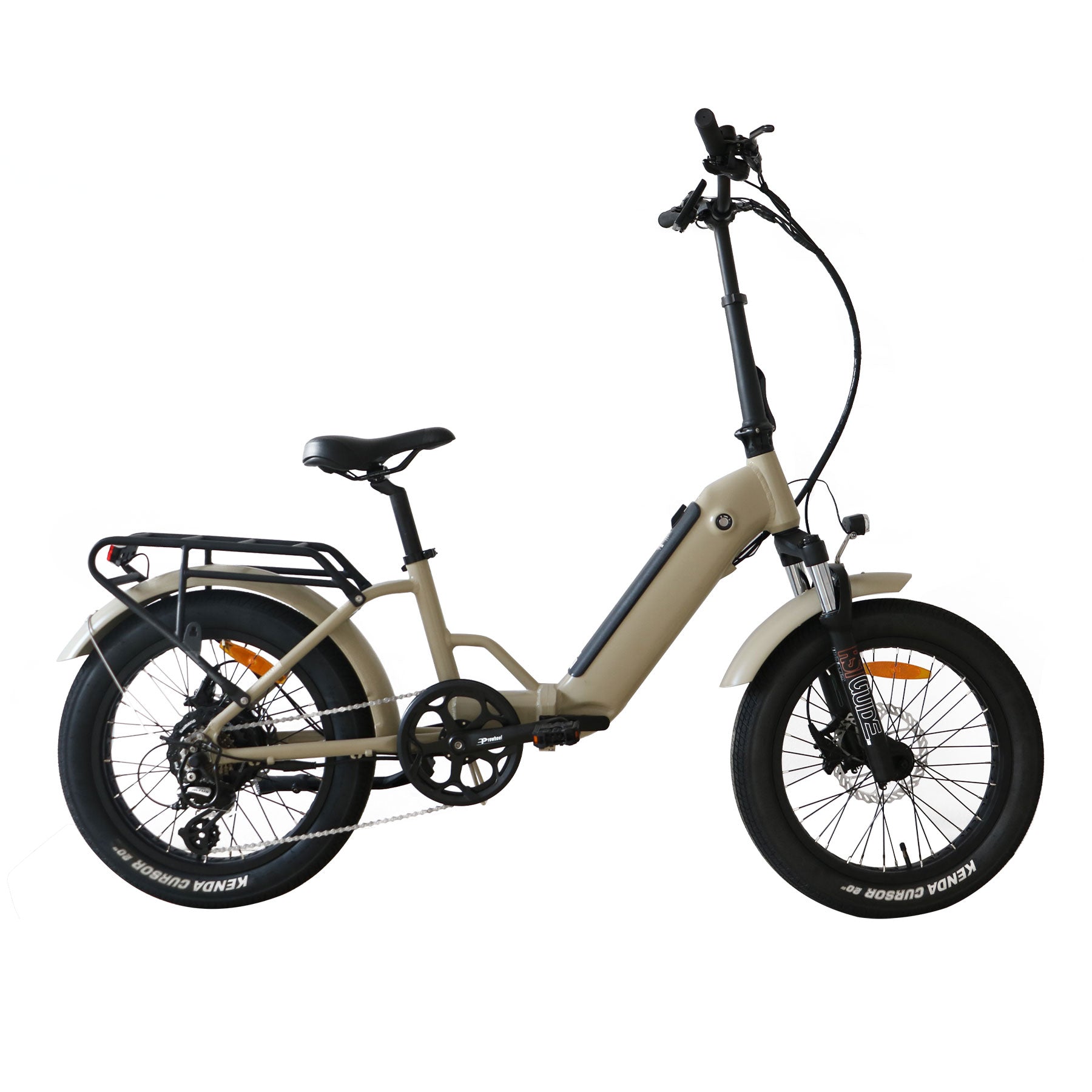

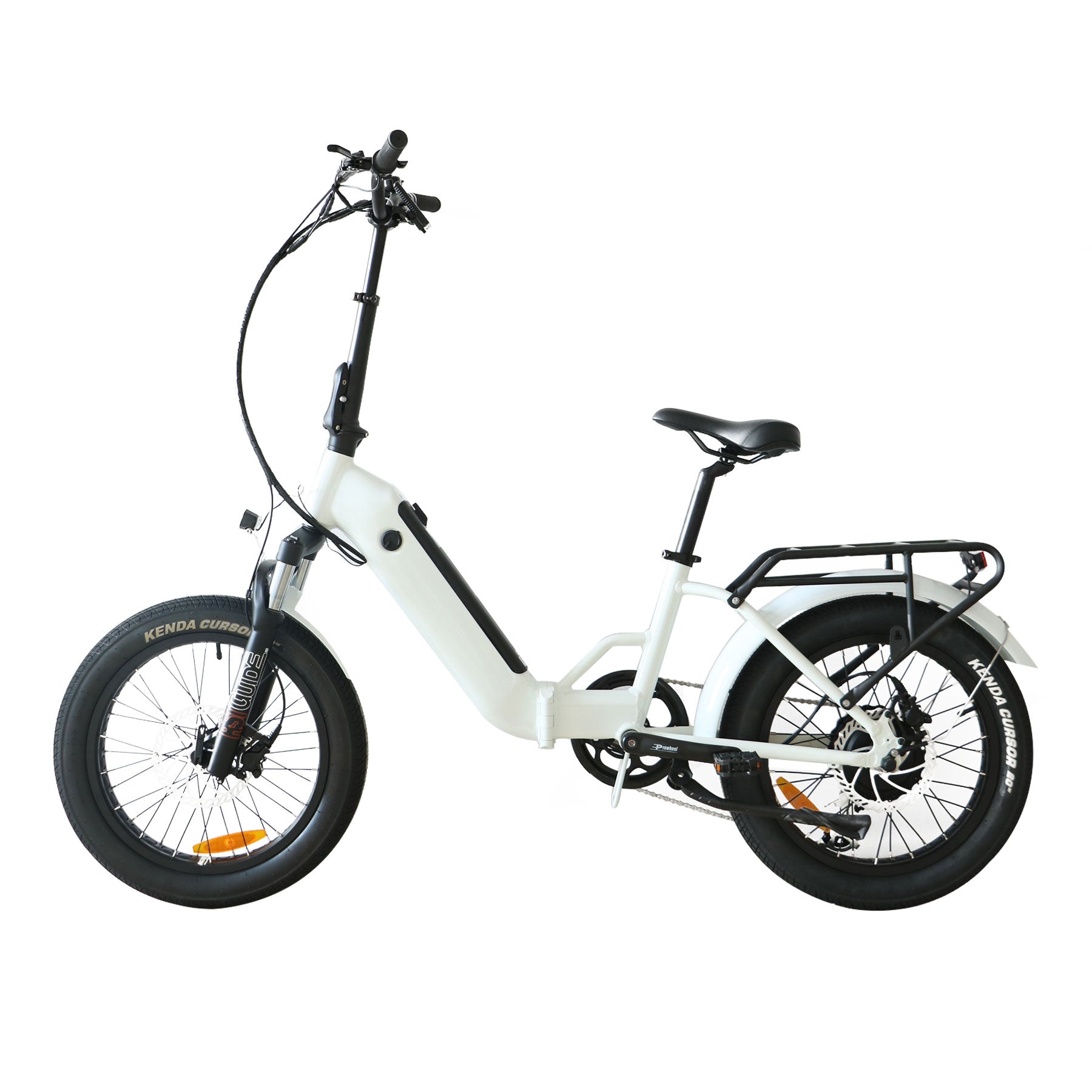

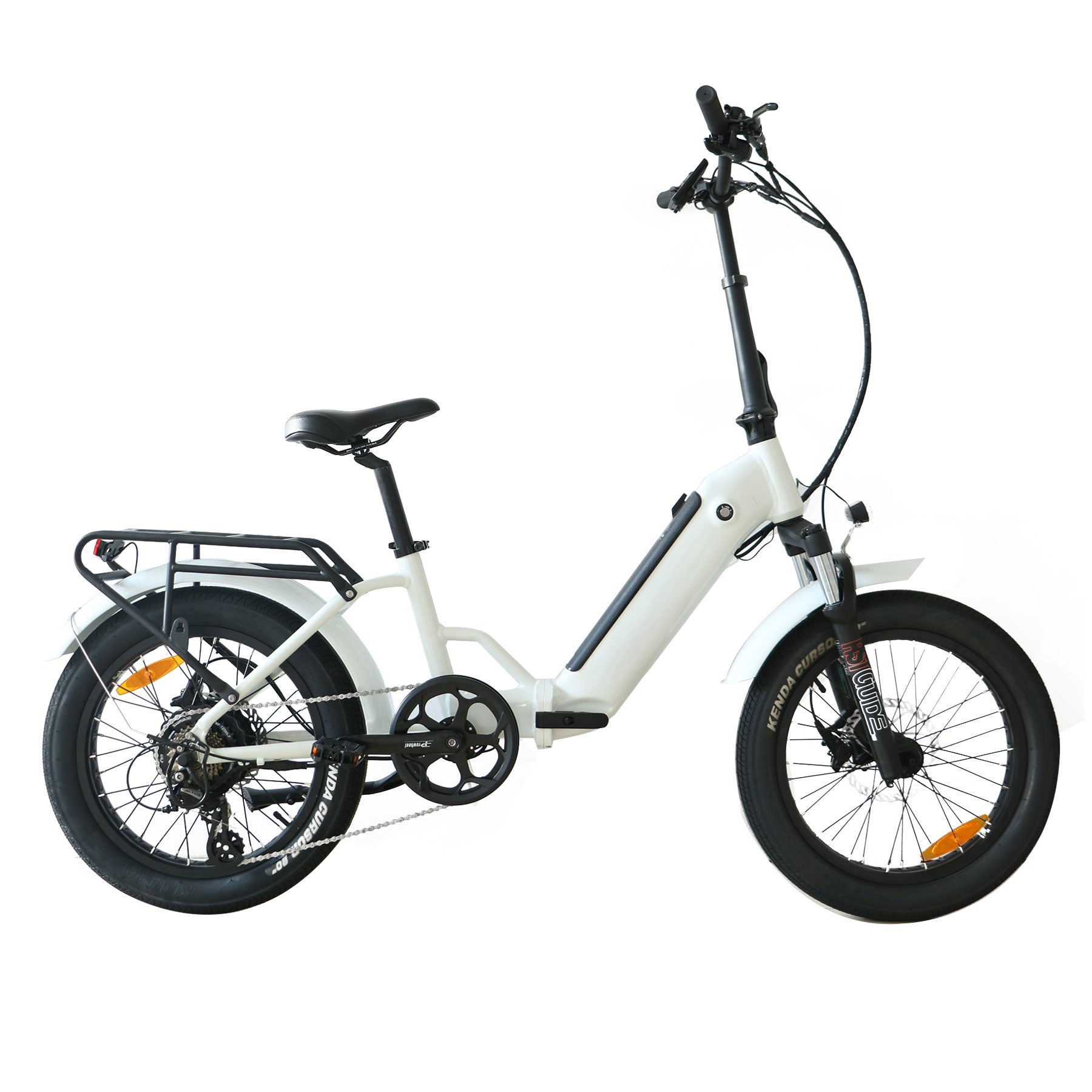

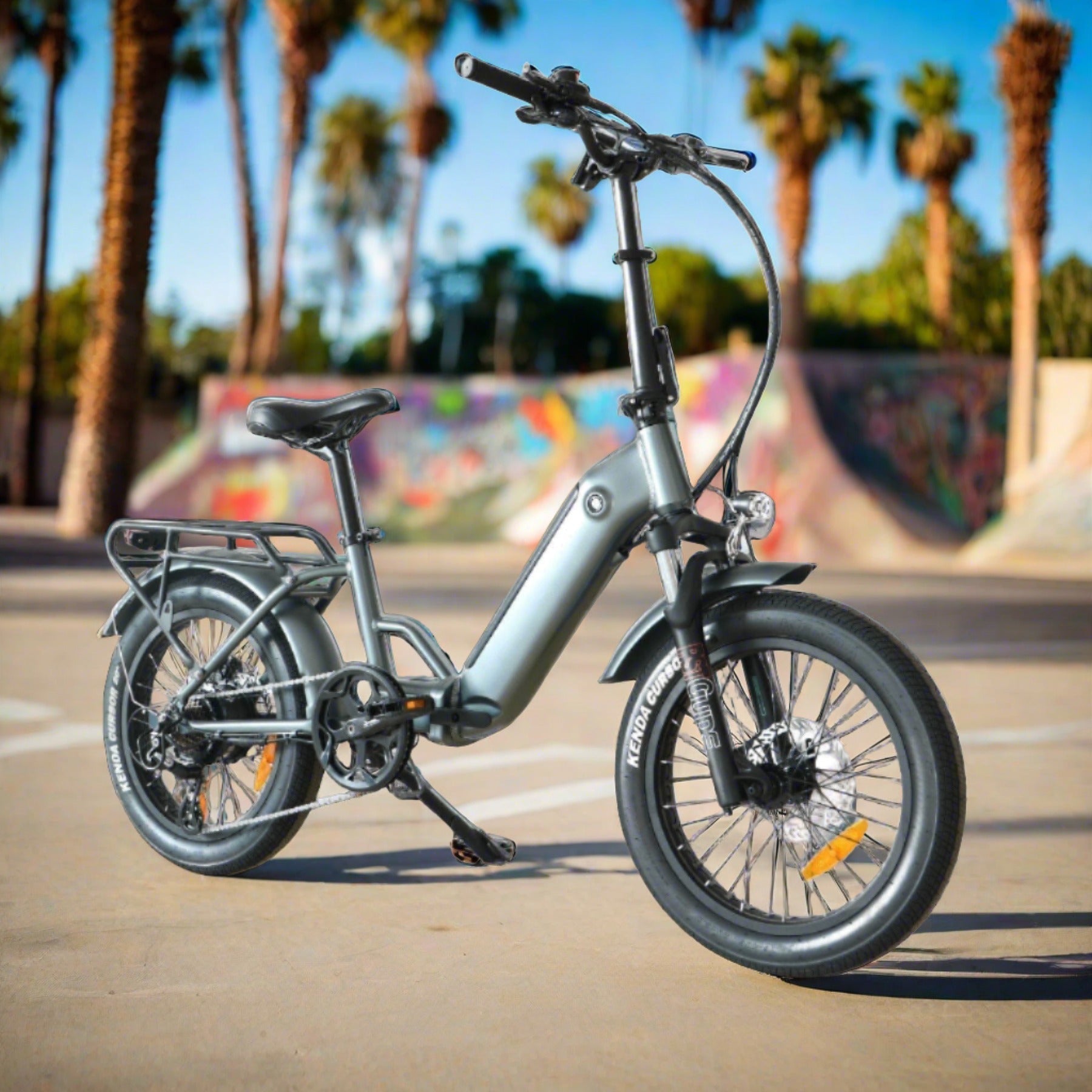

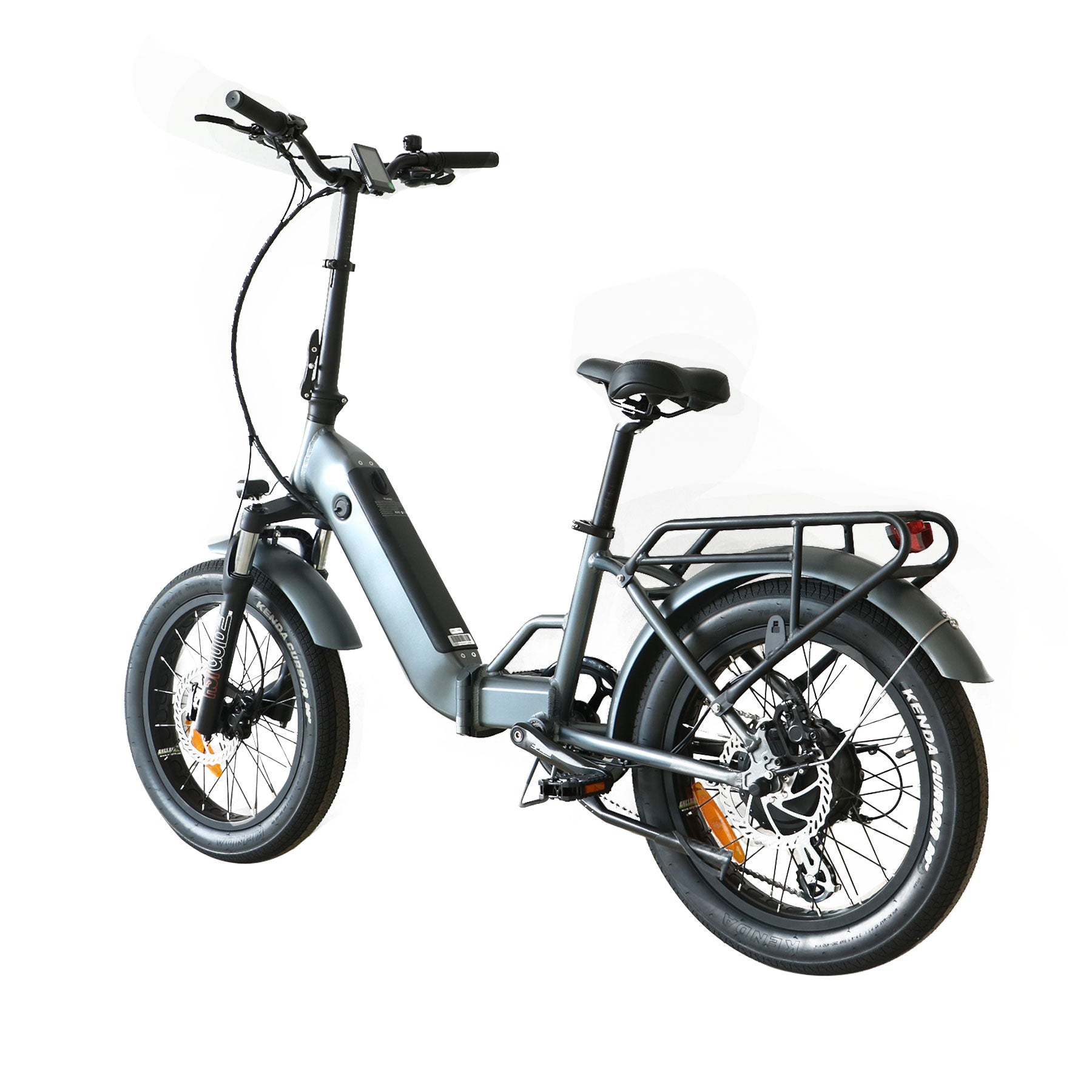

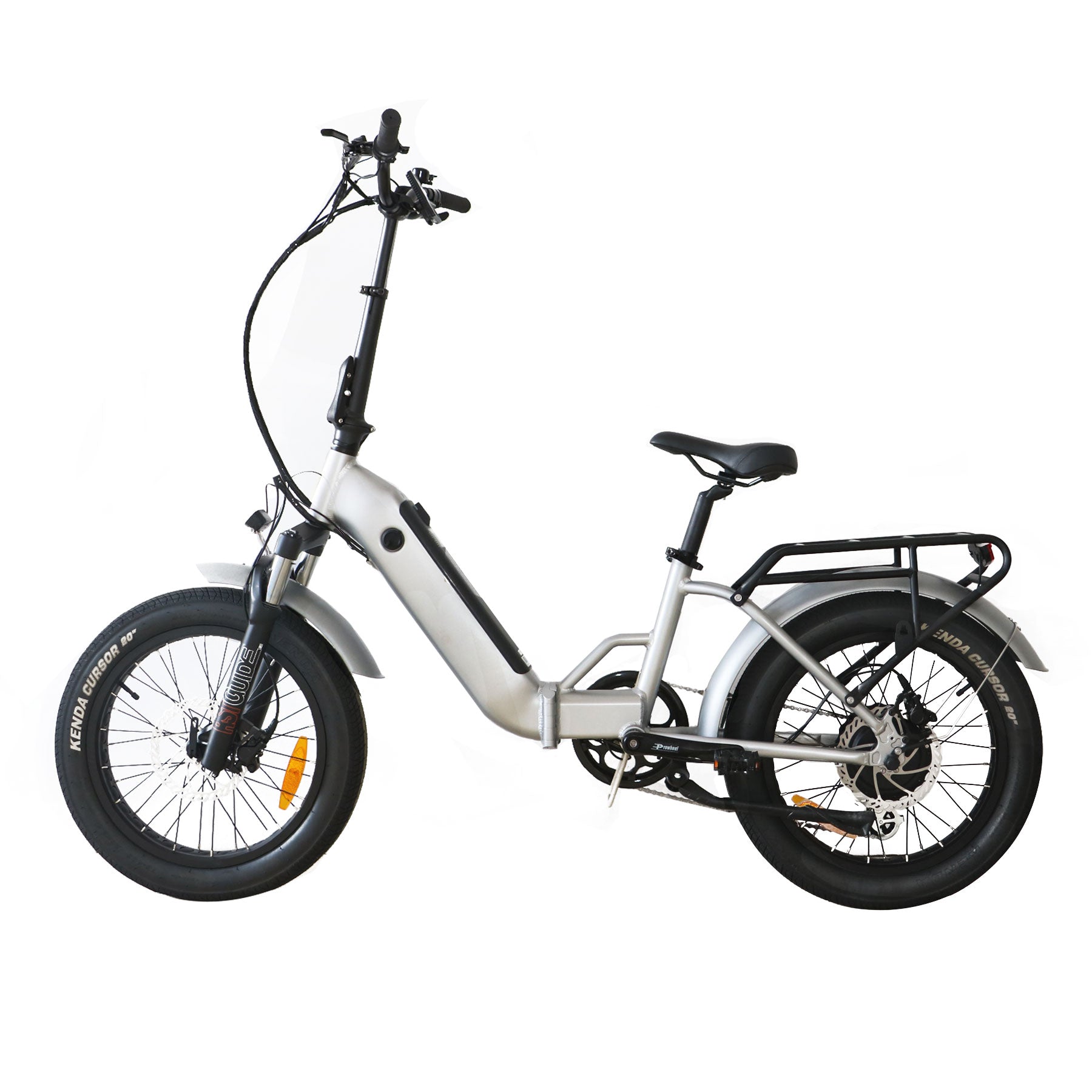

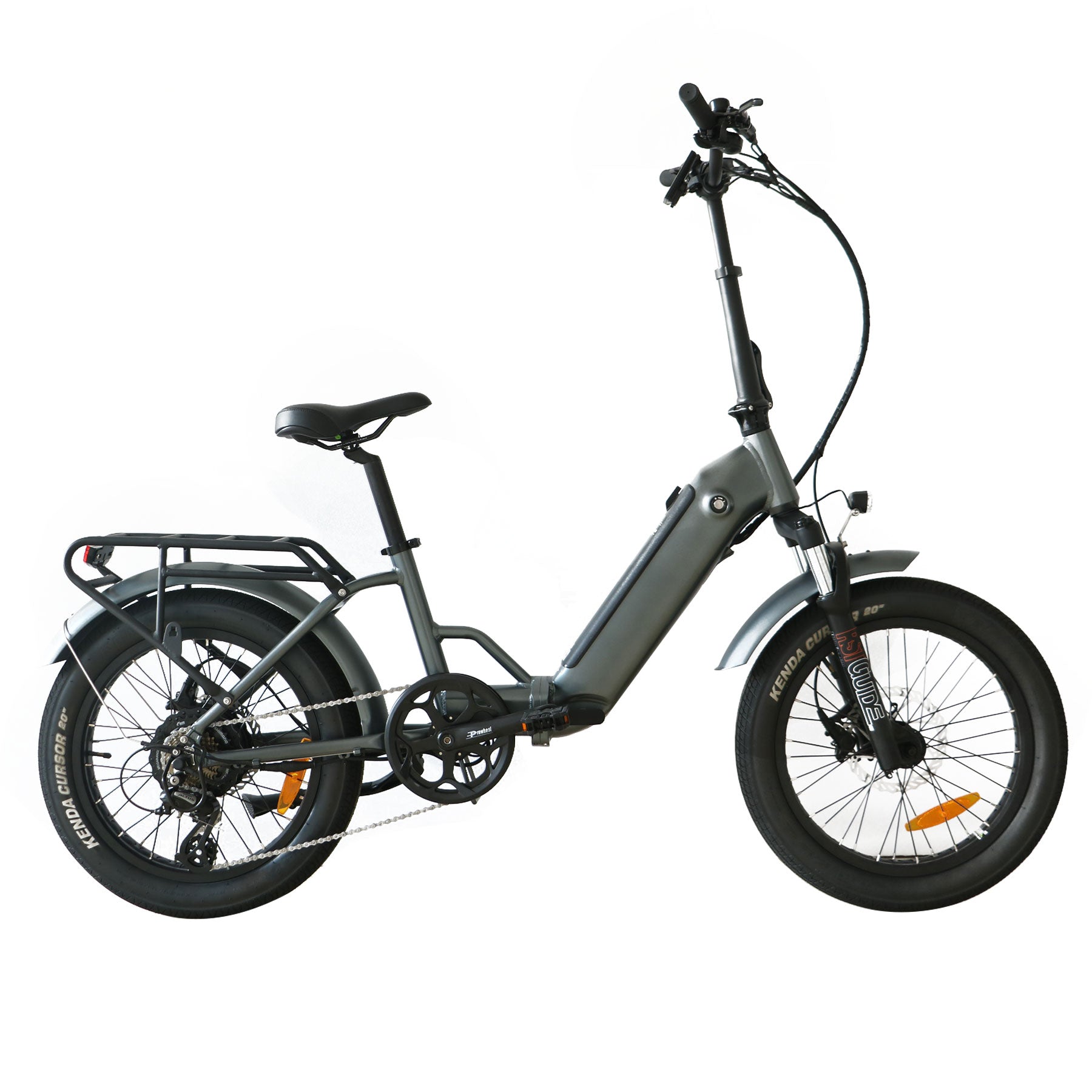

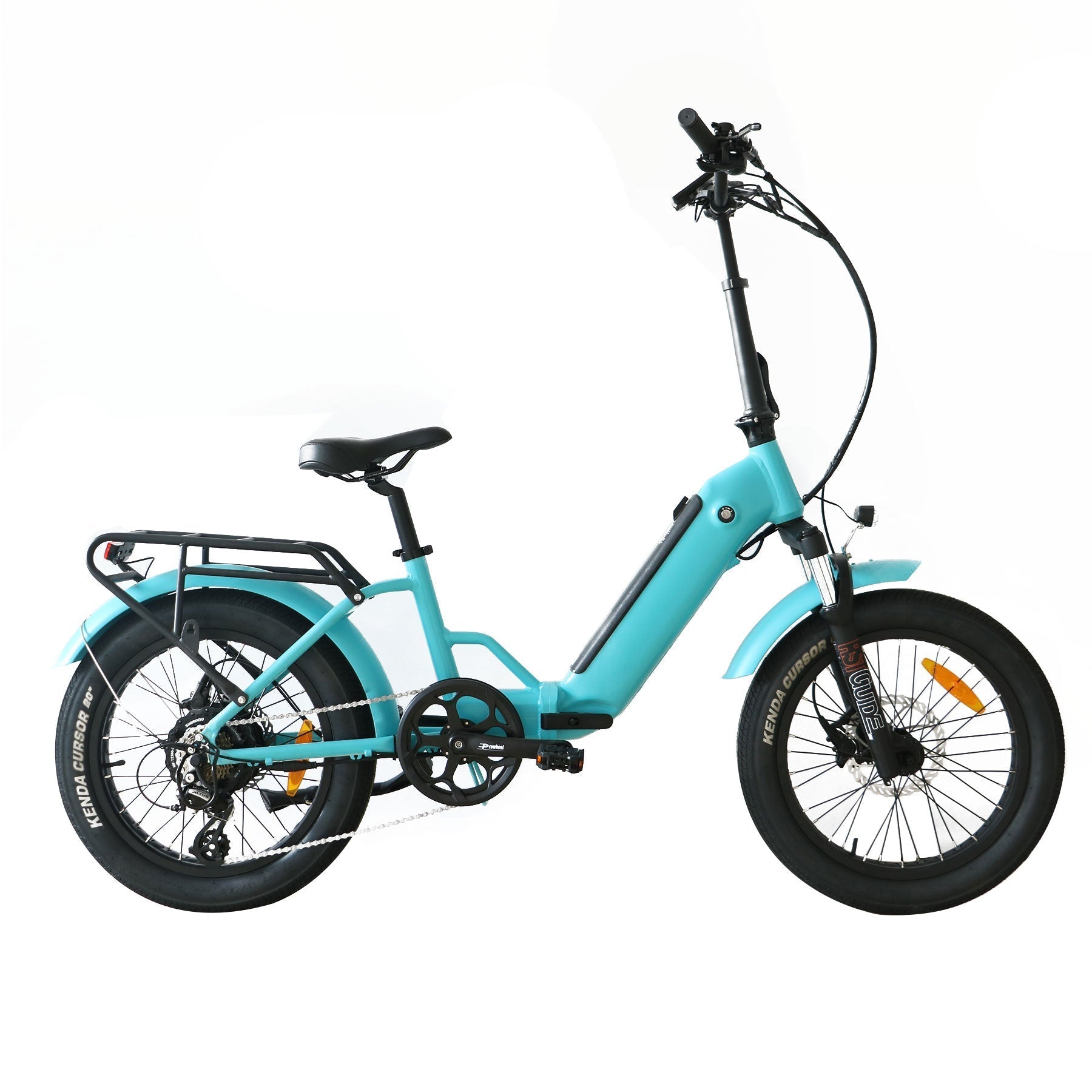

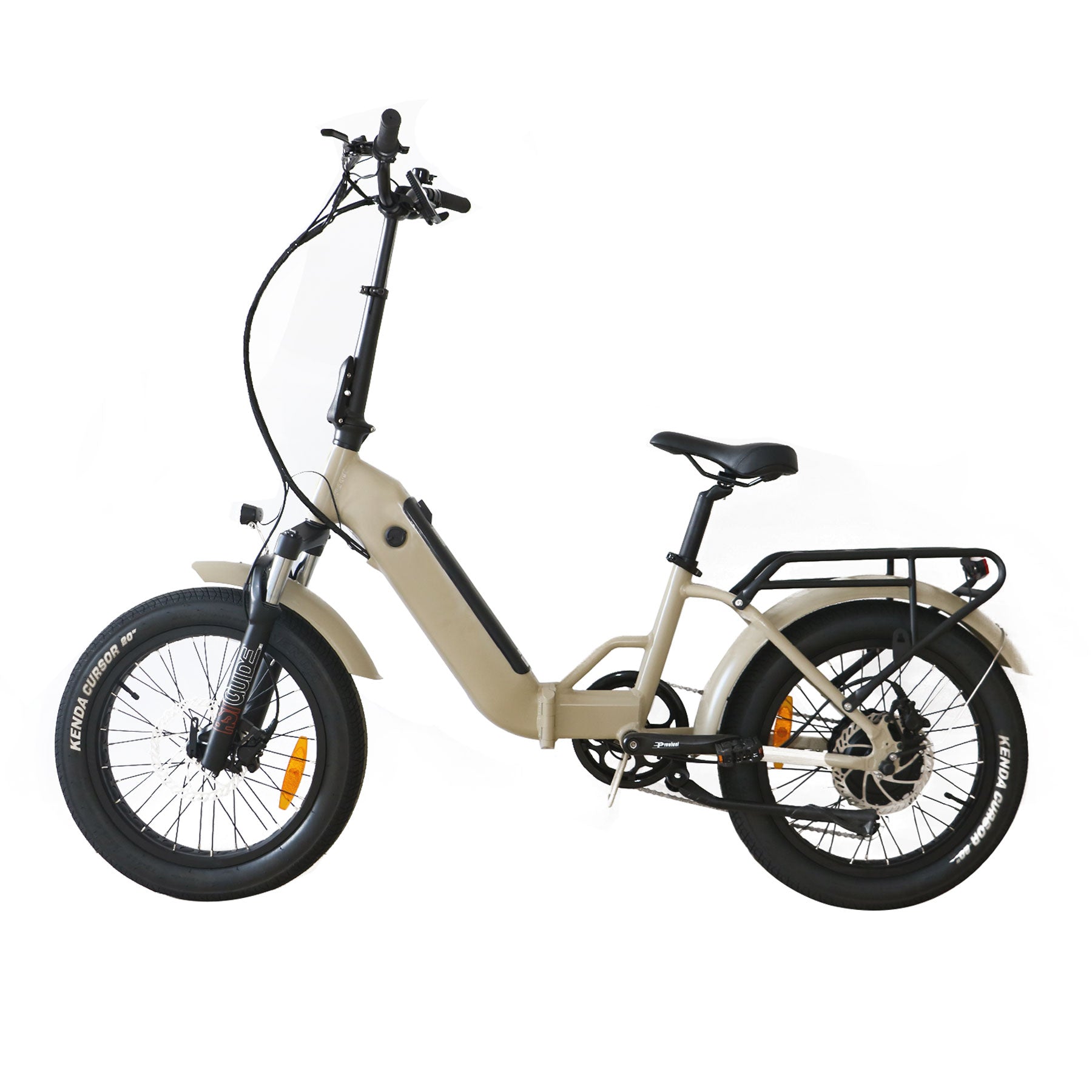

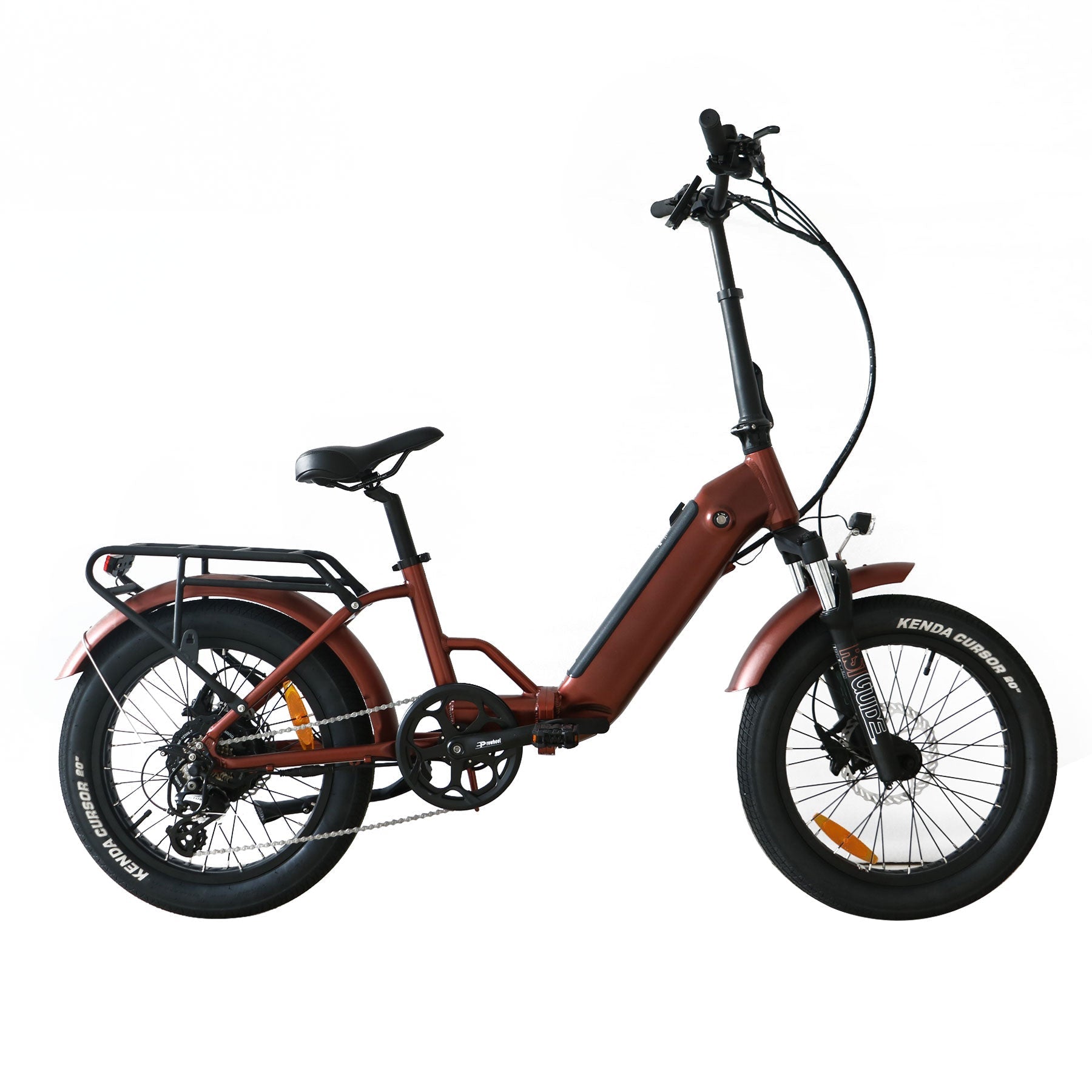

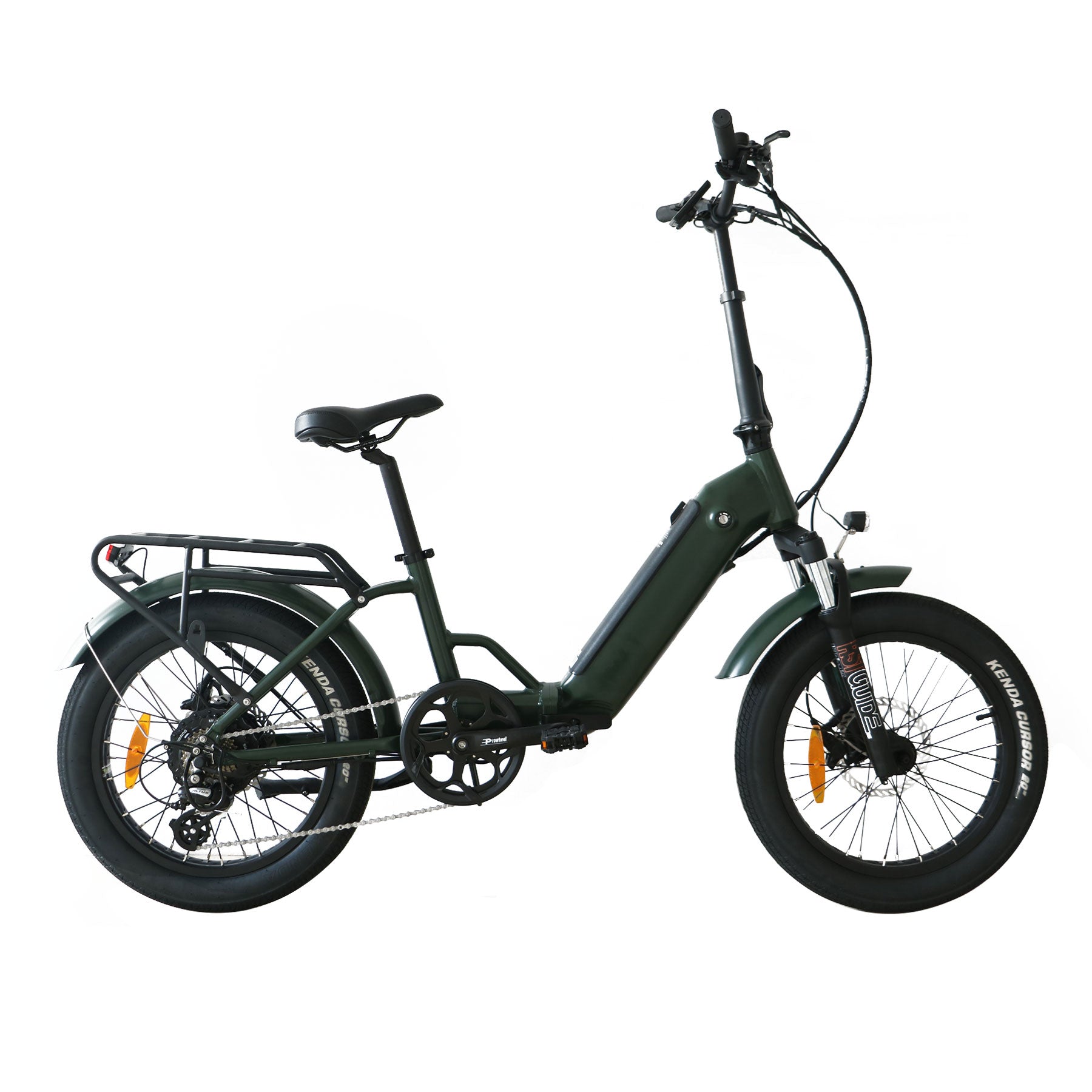

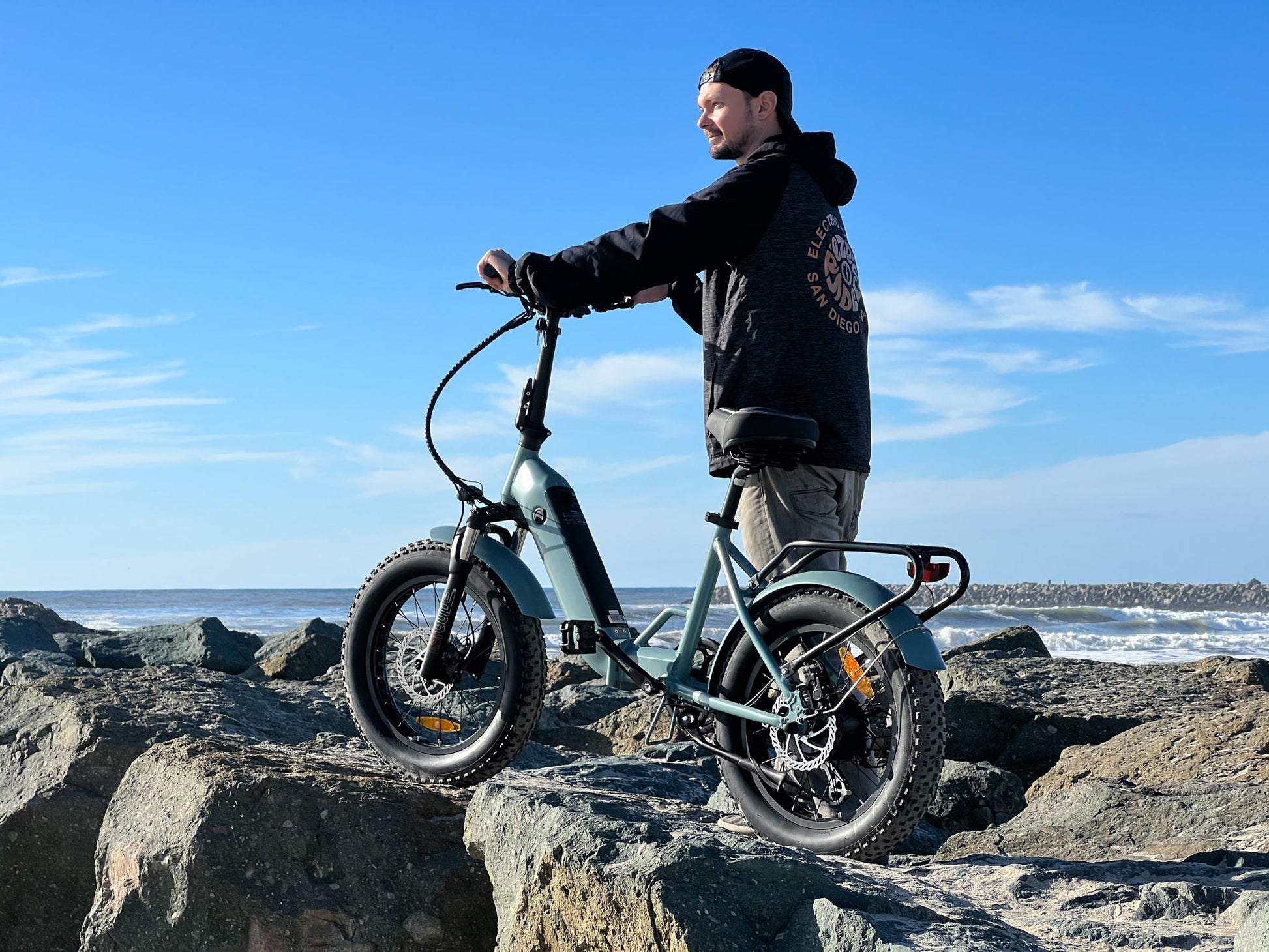

The Coastal Cruiser 750W Step-Thru folder remains one of our top models for 2023!
To enhance its performance, Coastal Cruiser has upgraded the tire size from 20x4 to a sleeker 20x3 with road tires, offering improved folding capability and a lighter ride.

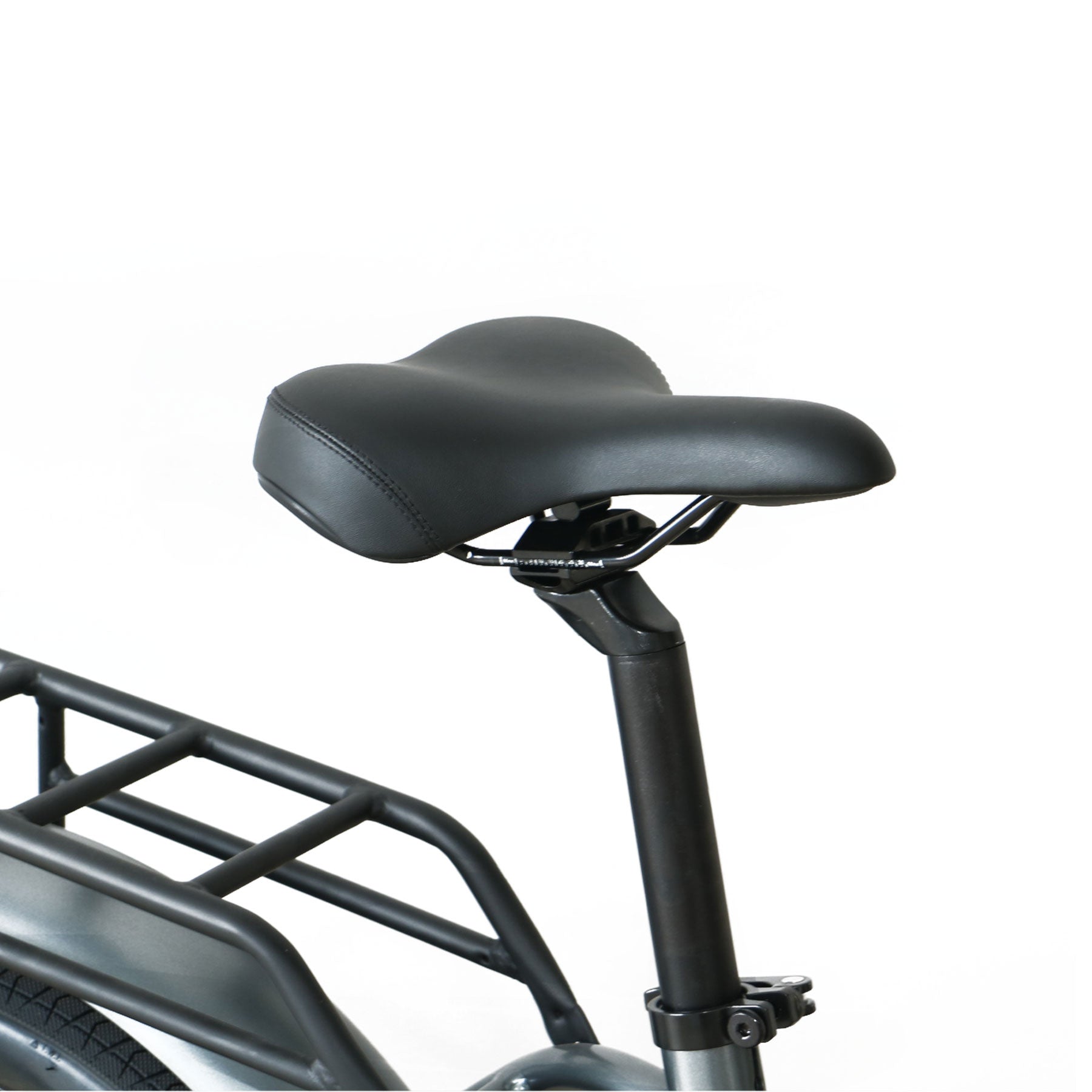

This bike is perfect for shorter riders, with an ultra-low seat height of 23 inches.
Download the user manual for the display here.
State, Local, and Federal Rebates Available. Save up to $750 on eligible purchases. Click here for more information.
Model SKU
BB-20x3FT
Description:

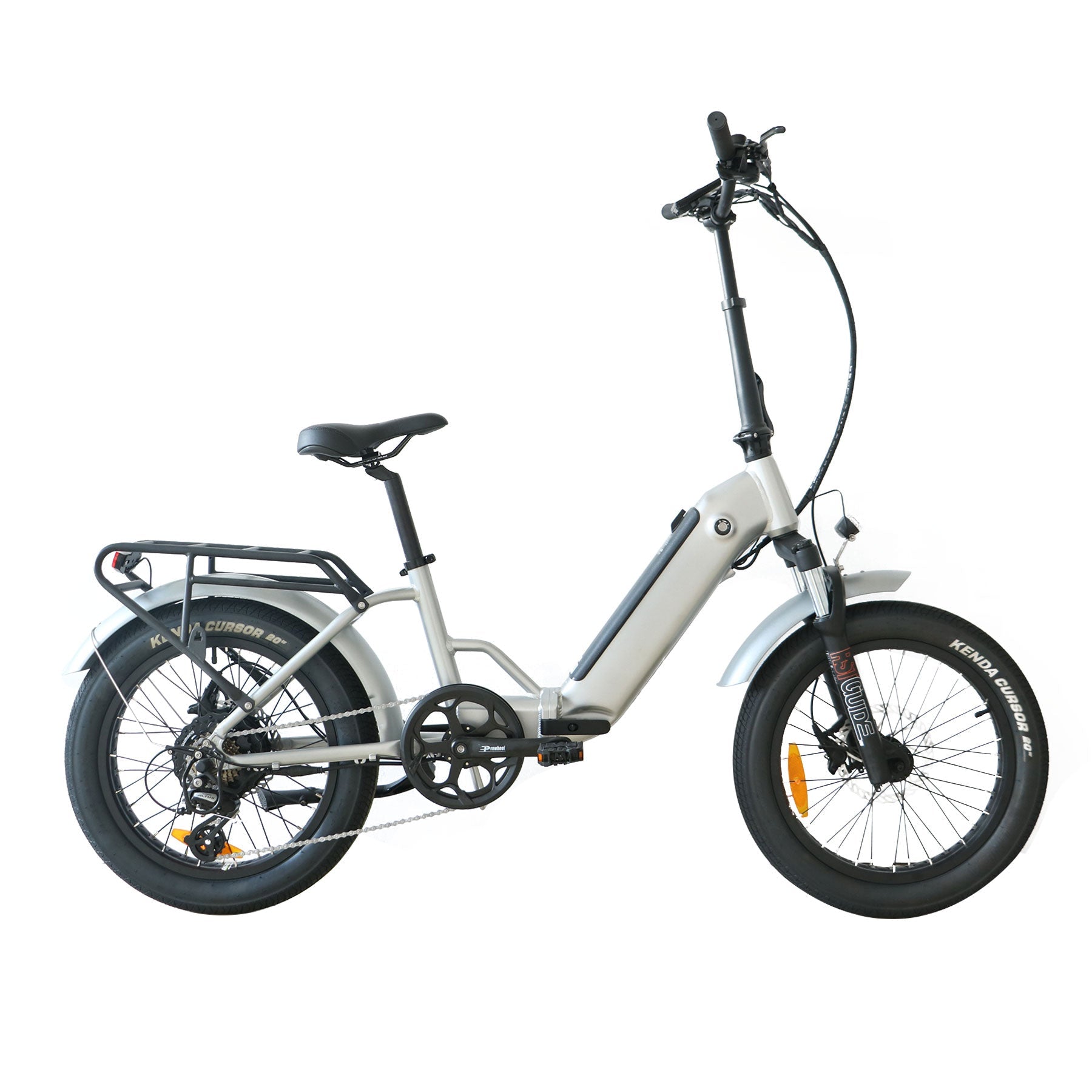

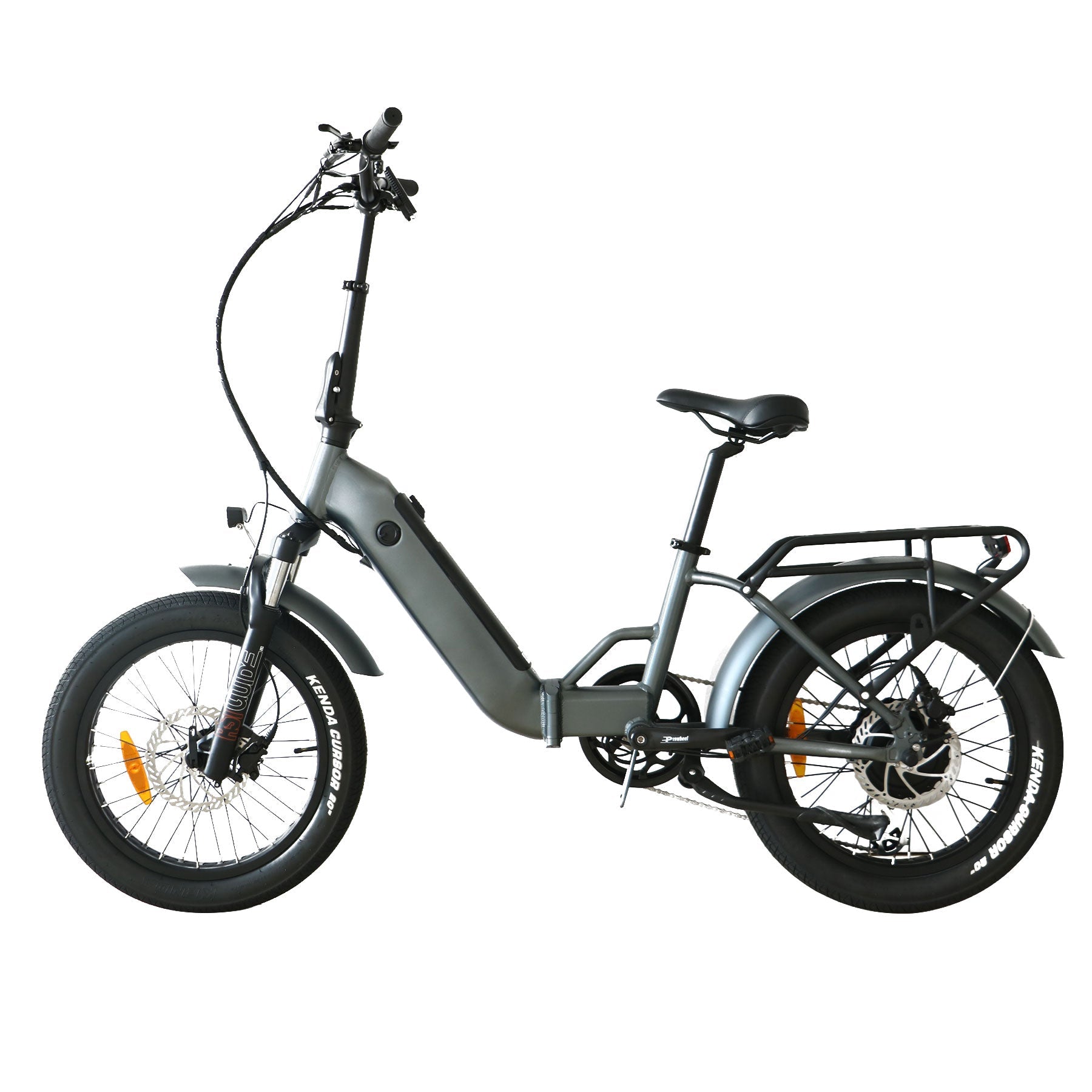

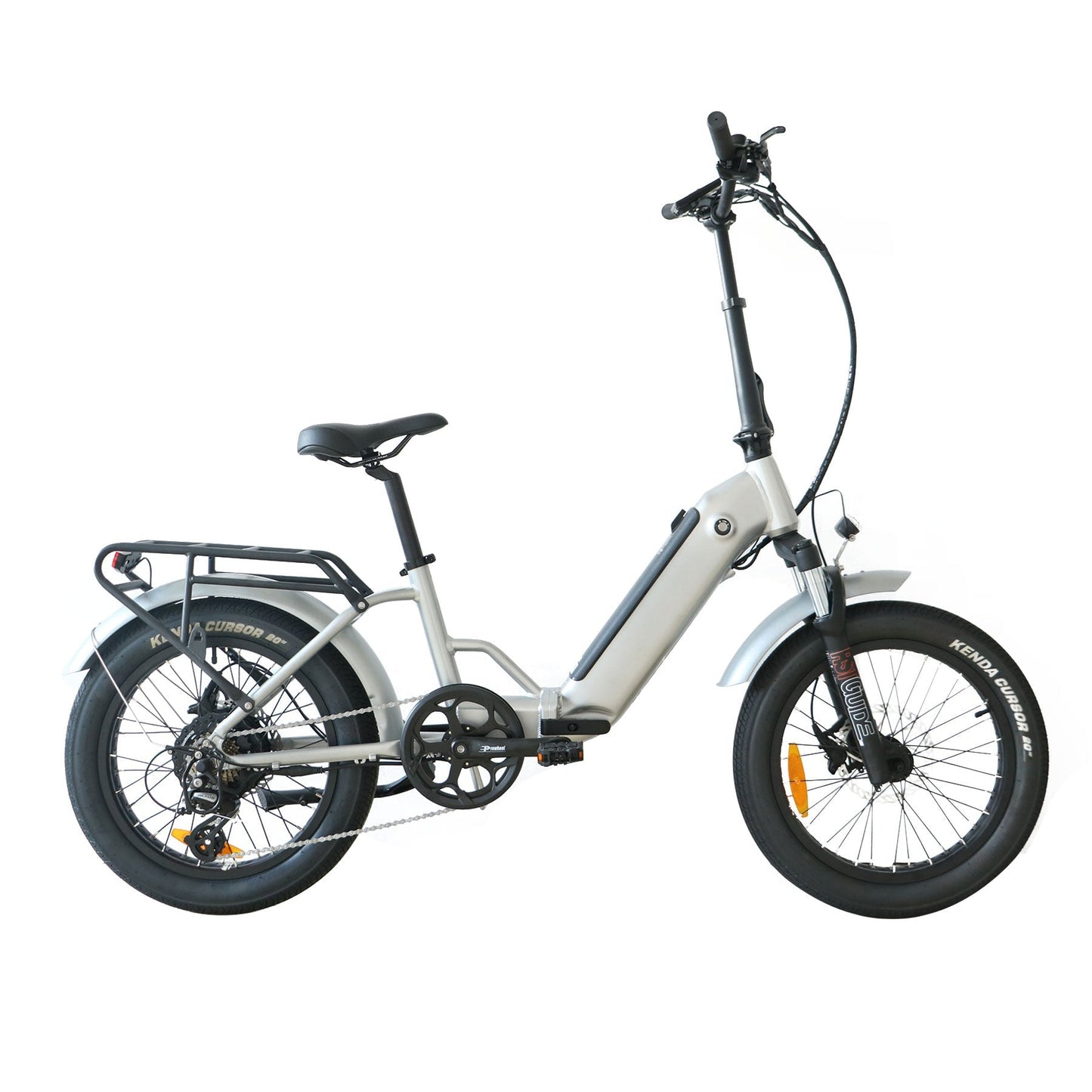

750w Fat Tire Folding Step Thru 20x3" - Integrated Battery
Suggested Use:
Casual Road & Path Riding, Light Offroad
CA E-Bike Class:
Class 2-3

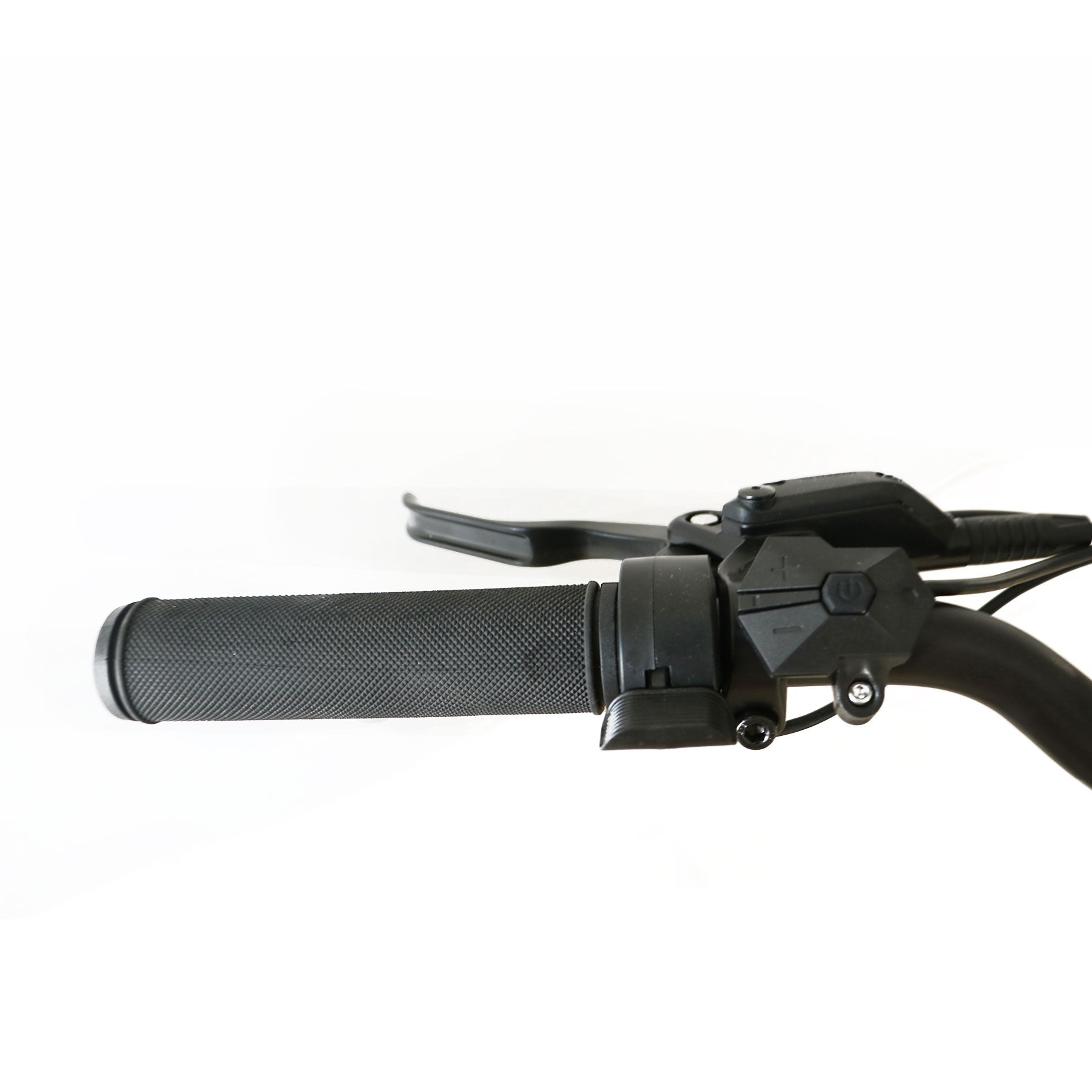

Drive Modes:
Thumb Throttle, 5 Level Pedal Assist, Manual Pedal

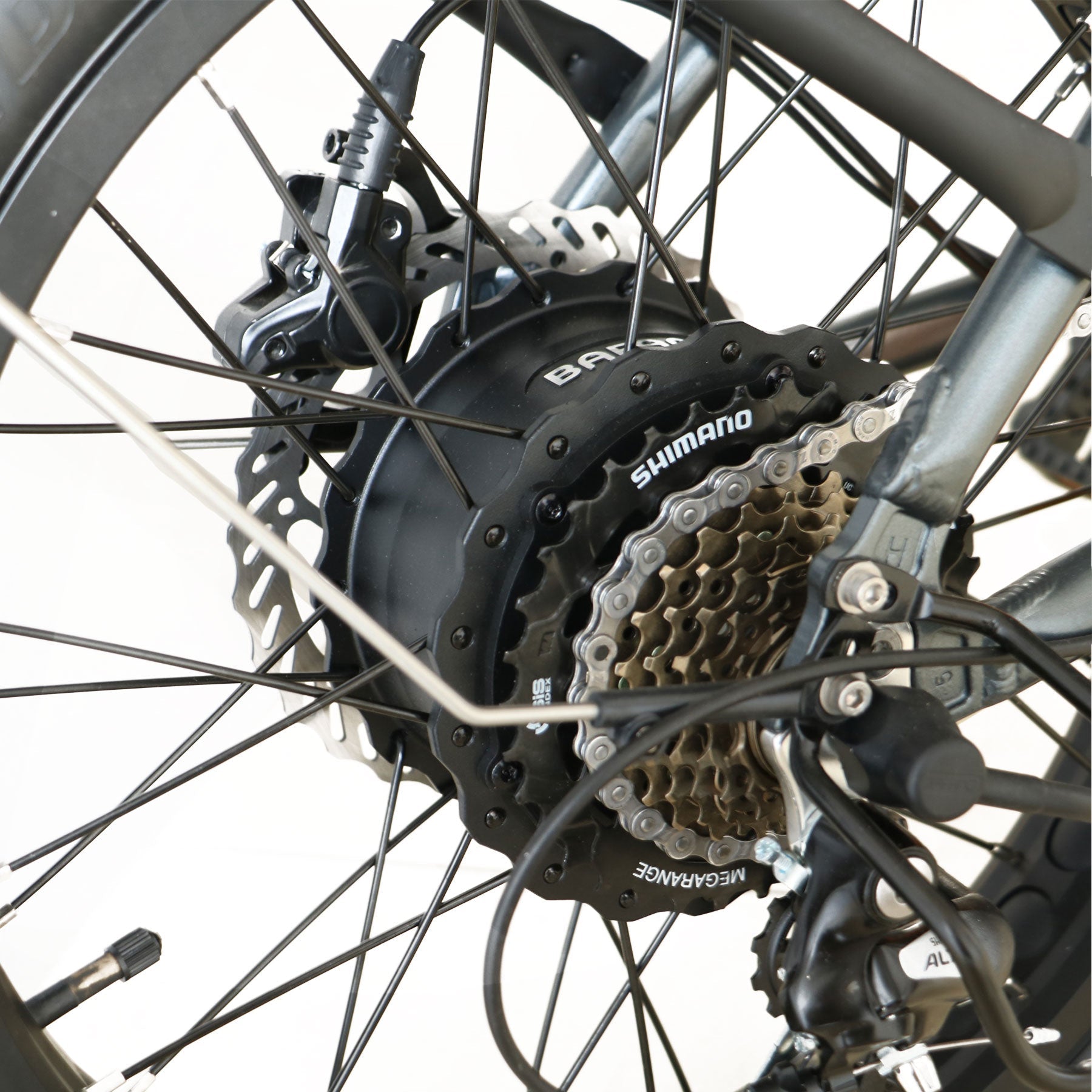

Motor Type:
Bafang® 750W Hub Motor
Controller:
48V 22A Intelligent Controller

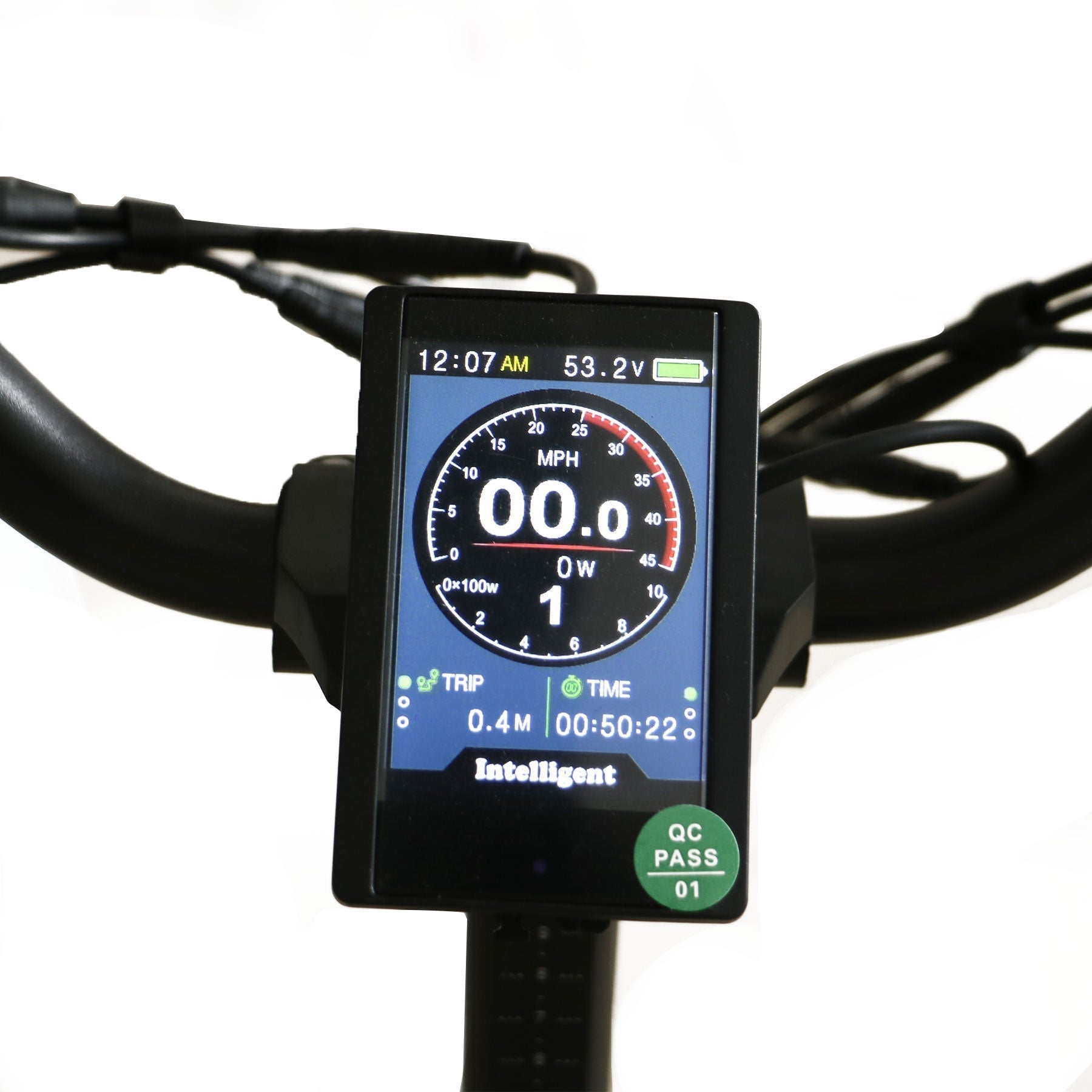

Display:
APT 860C Color w/ USB Port

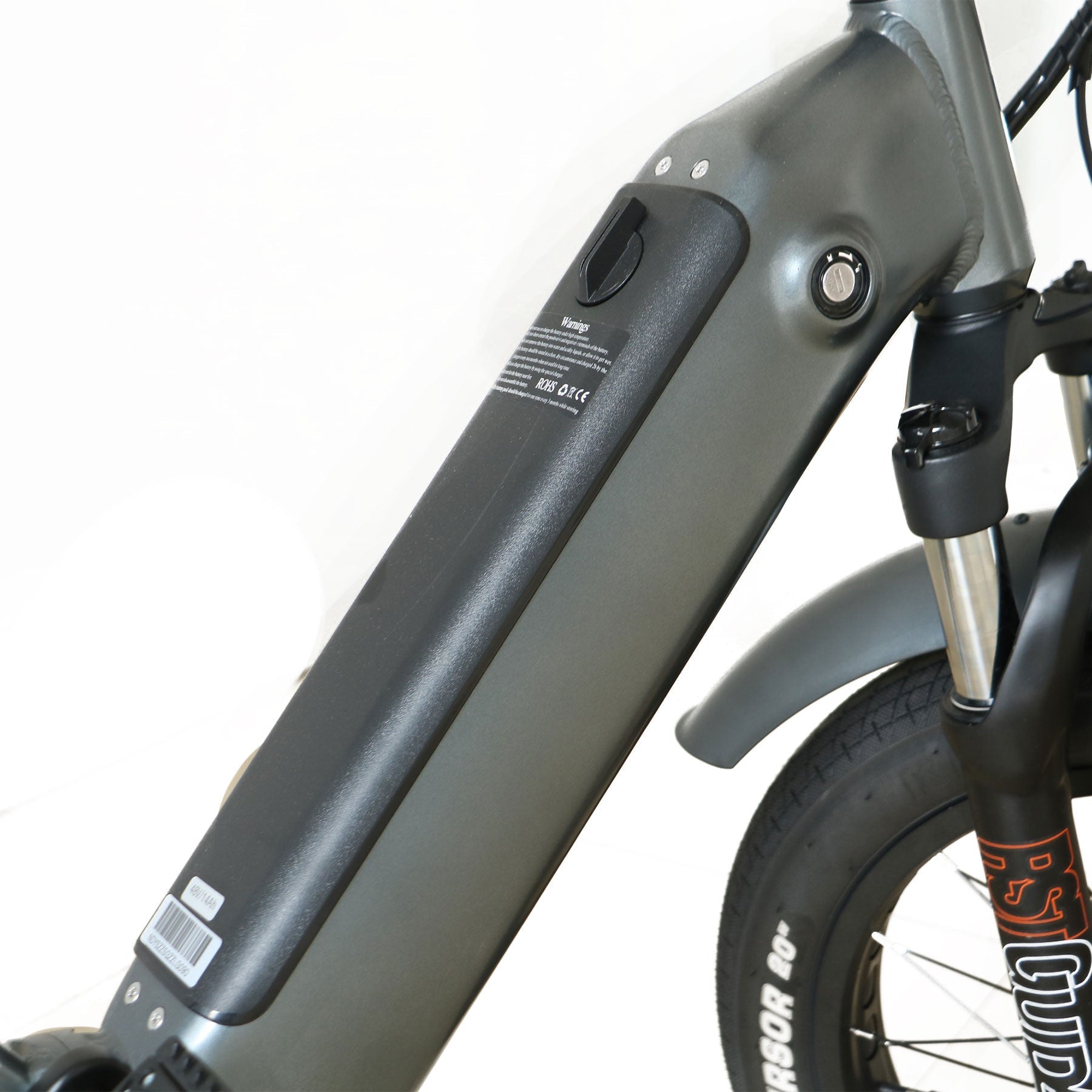

Battery:
Samsung 48V 14AH Lithium Ion Battery
Charger:
48V 2Amp Smart Charger
Charge Time:
3-6 Hours
Estimated Range:
25- 40 miles (40-60 km)
Max Speed:
20 mph (32 km/h) (Full Electric)
Frame:
Aluminum Alloy 6061
Bike Weight (Net):
60 LBS
Total Payload Capacity:
275 lbs (125 kg)

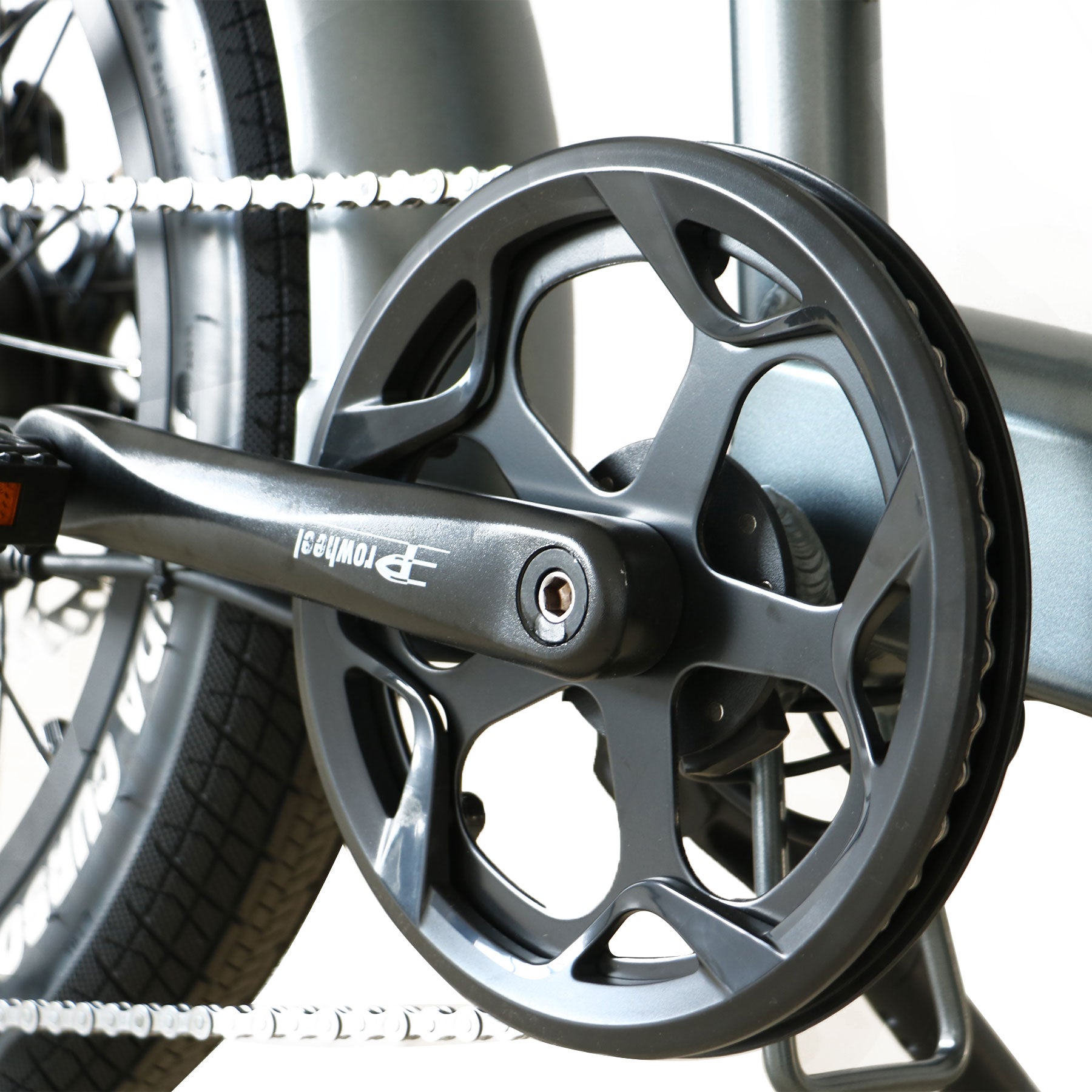

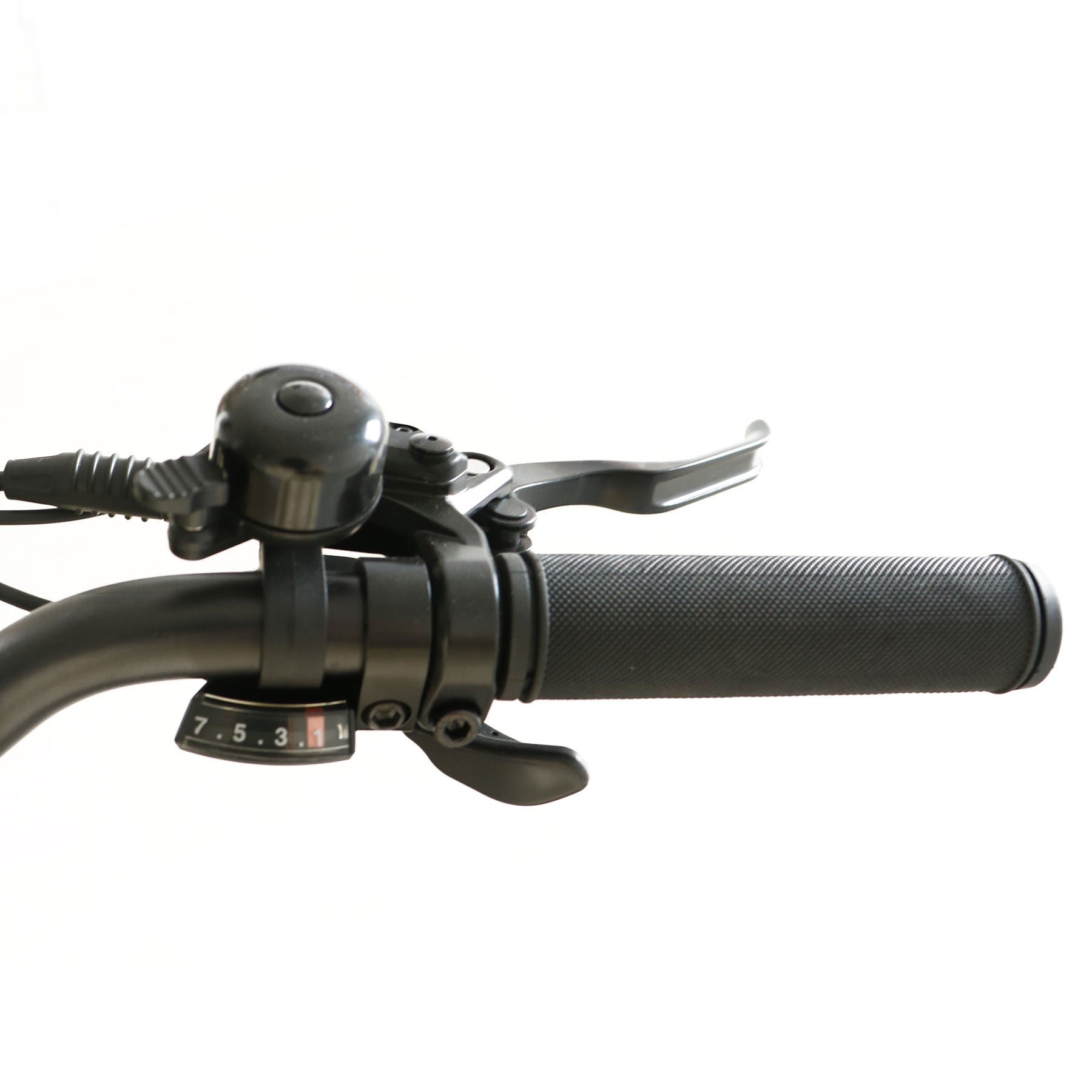

Drivetrain:
7 Speed Shimano® Altus

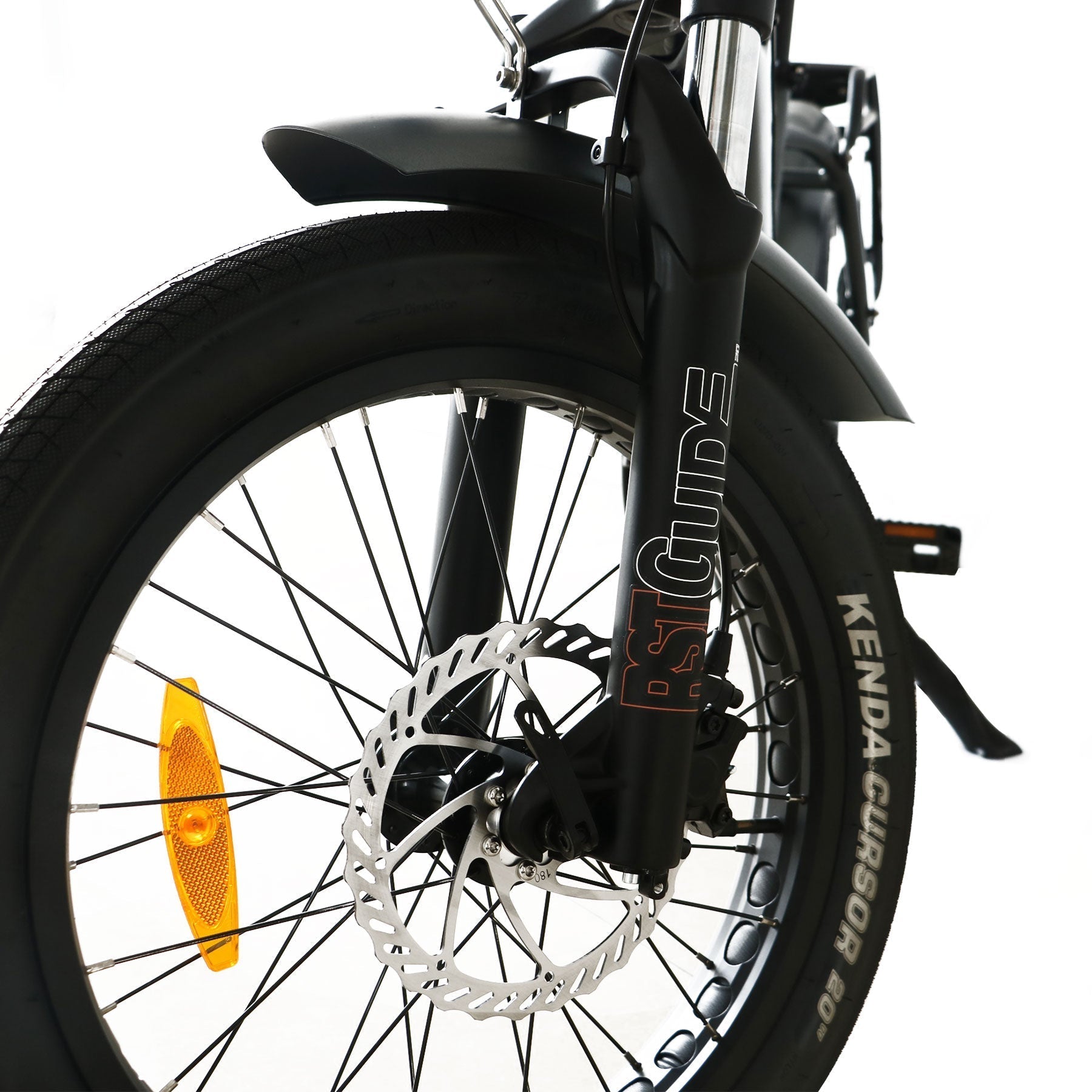

Suspension:
Locking Front Suspension

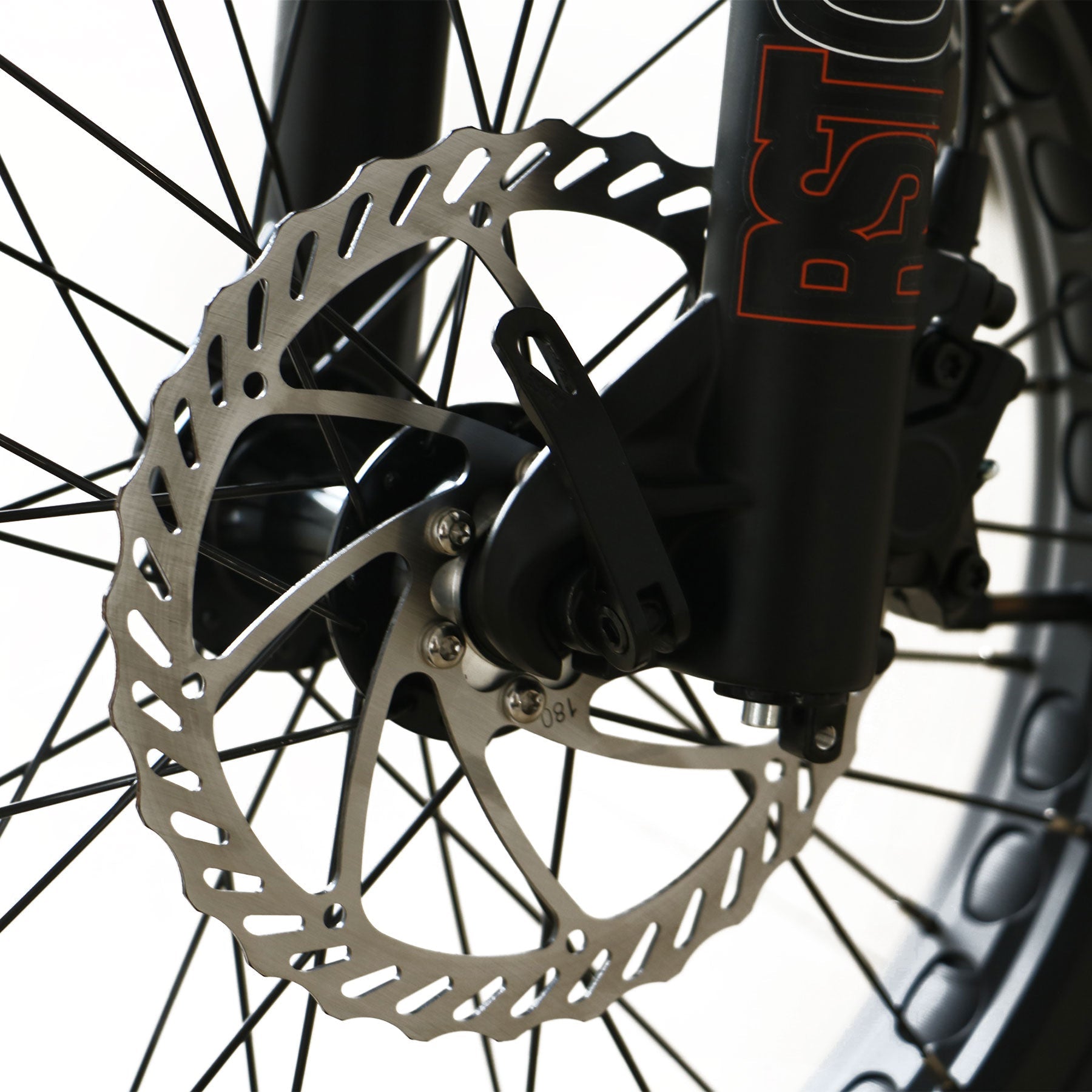

Brakes:
Jevelo Hydraulic Disc Brakes (180mm)
Wheels:
20x3 inch

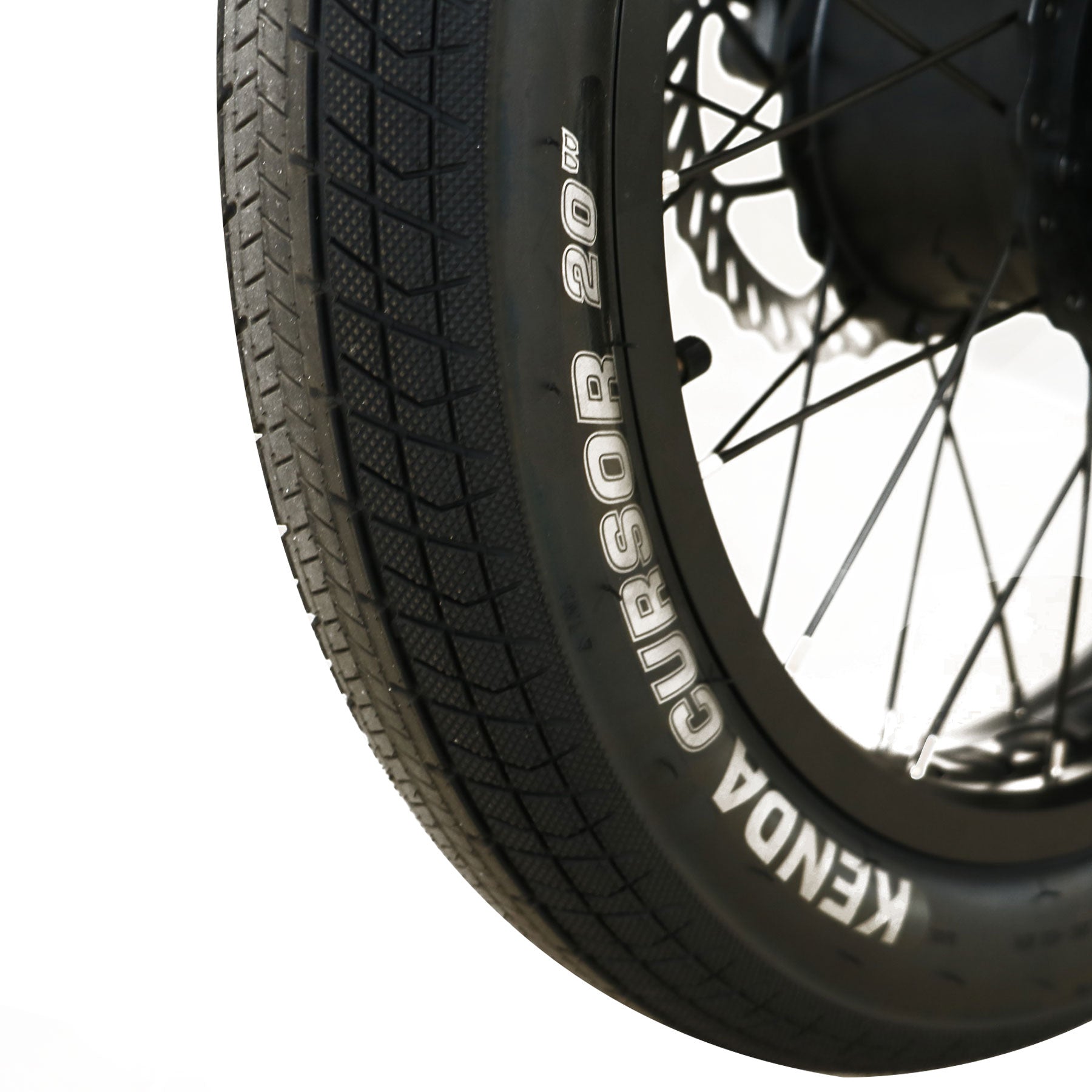

Tires:
CST 3 in Road Tire

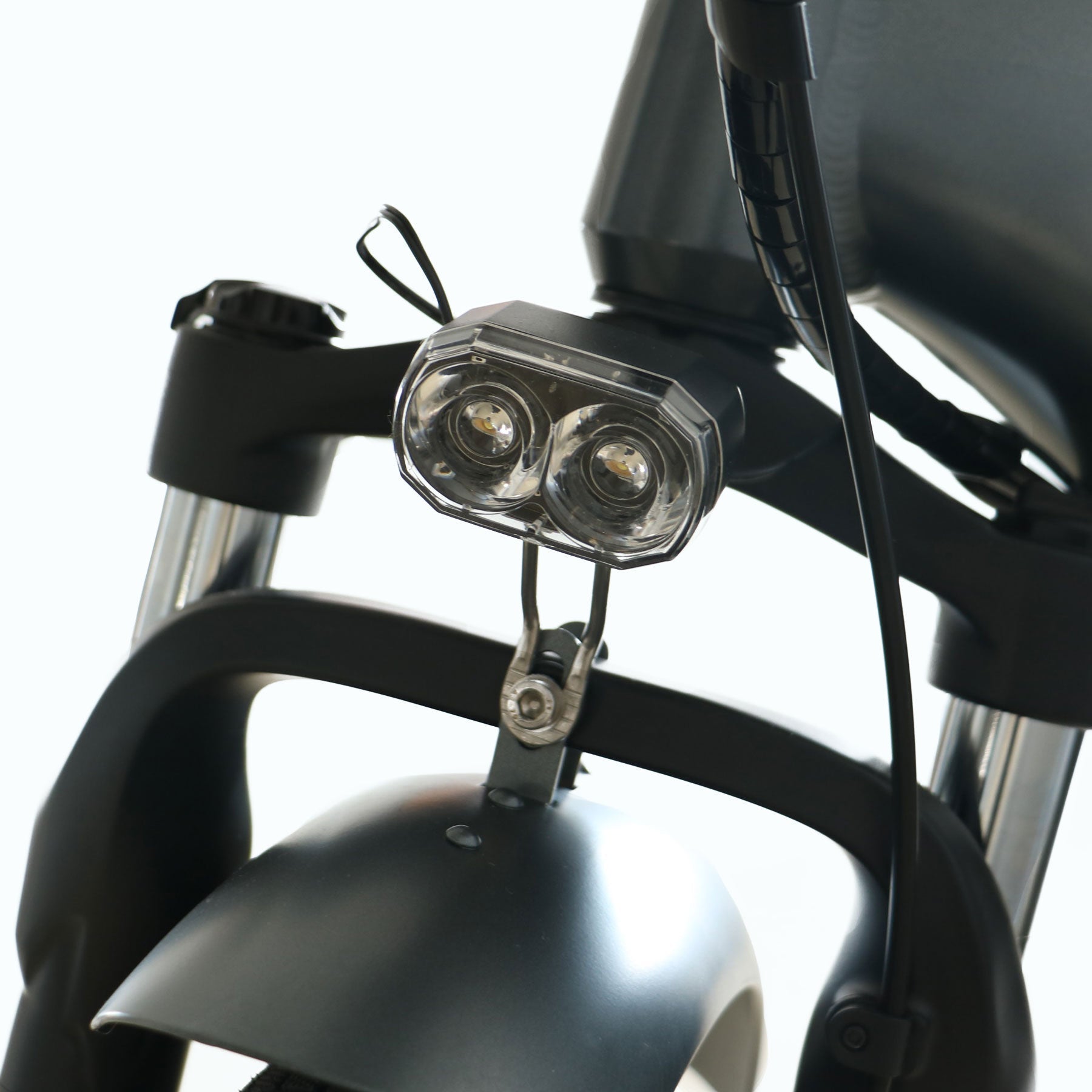

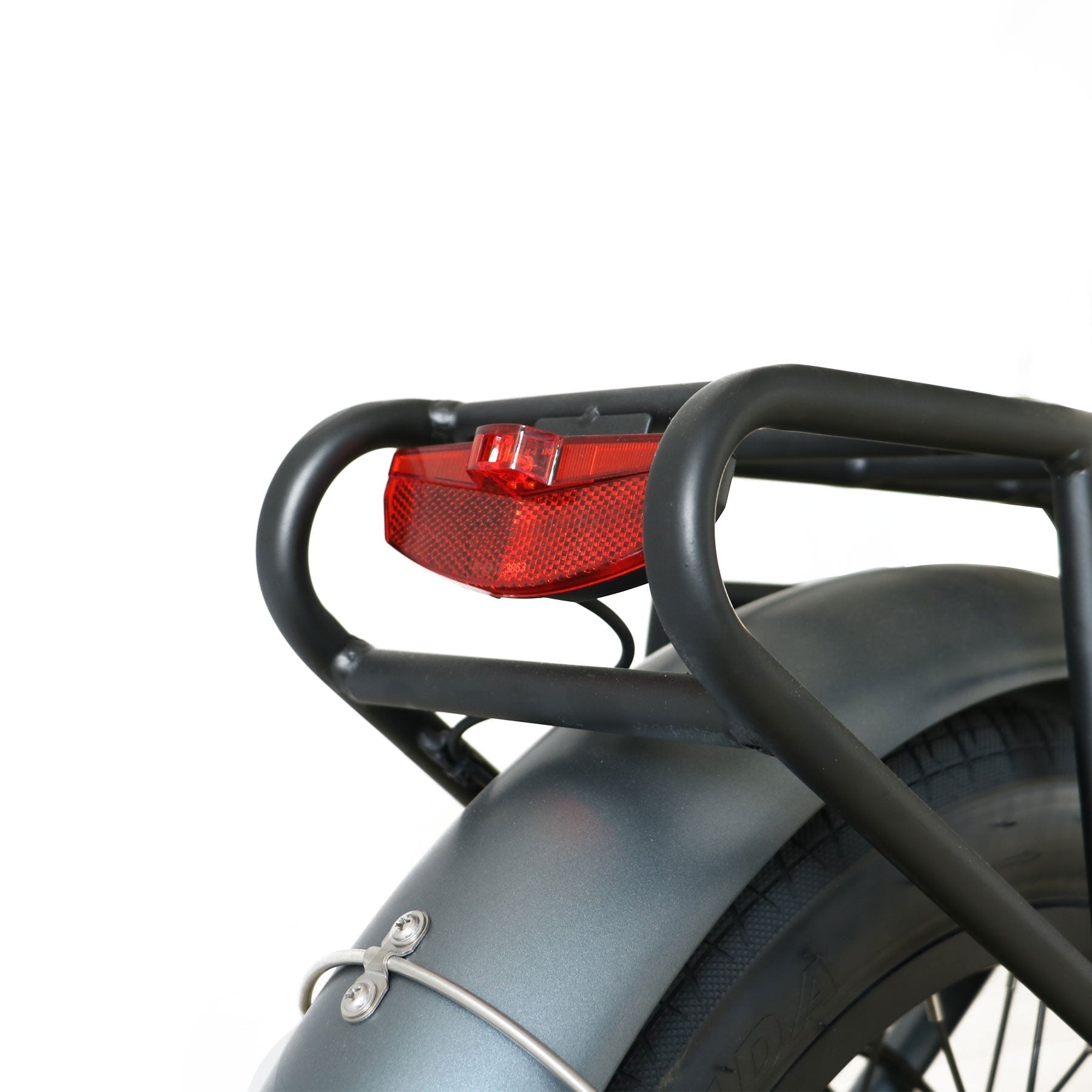

Lights:
Front and Rear Included
Rack:
Factory Installed Rear Rack
Mudguards:
Factory Installed Rear Fender, Front Included
Pedals:
Nylon Folding Pedals
Warranty:
1 Year Factory Warranty
Bike Dimensions:
Wheel-wheel 67 in, hub-hub 45 in, handlebars 48-53 in, seat 35-40 in, crossbar 29-32 in
Carton Size:
58 x 31 x 14.5
Carton Weight (Gross):
77 lbs (35 kg)
