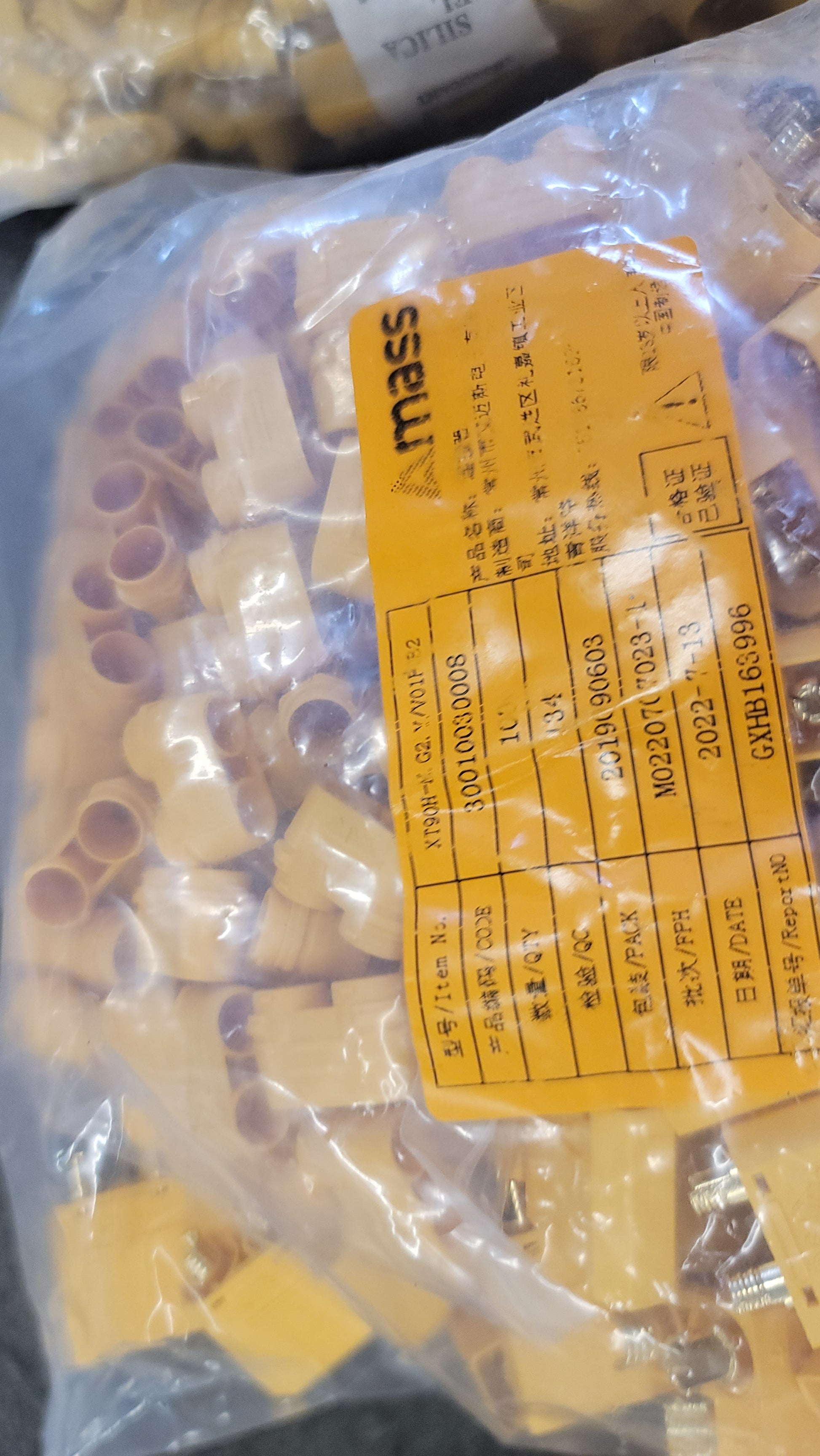

We got tired of ordering battery connectors from other vendors for our special projects so we bought directly from the source. All of our connectors are genuine Amass quality. None of the sloppy loose fitting china clones.
Once soldered up, there are plastic guards that clip on each connector giving you a neatly wired plug and helps prevent short circuits. The design also provides no chance of incorrect polarity connection due to the square negative and circular positive

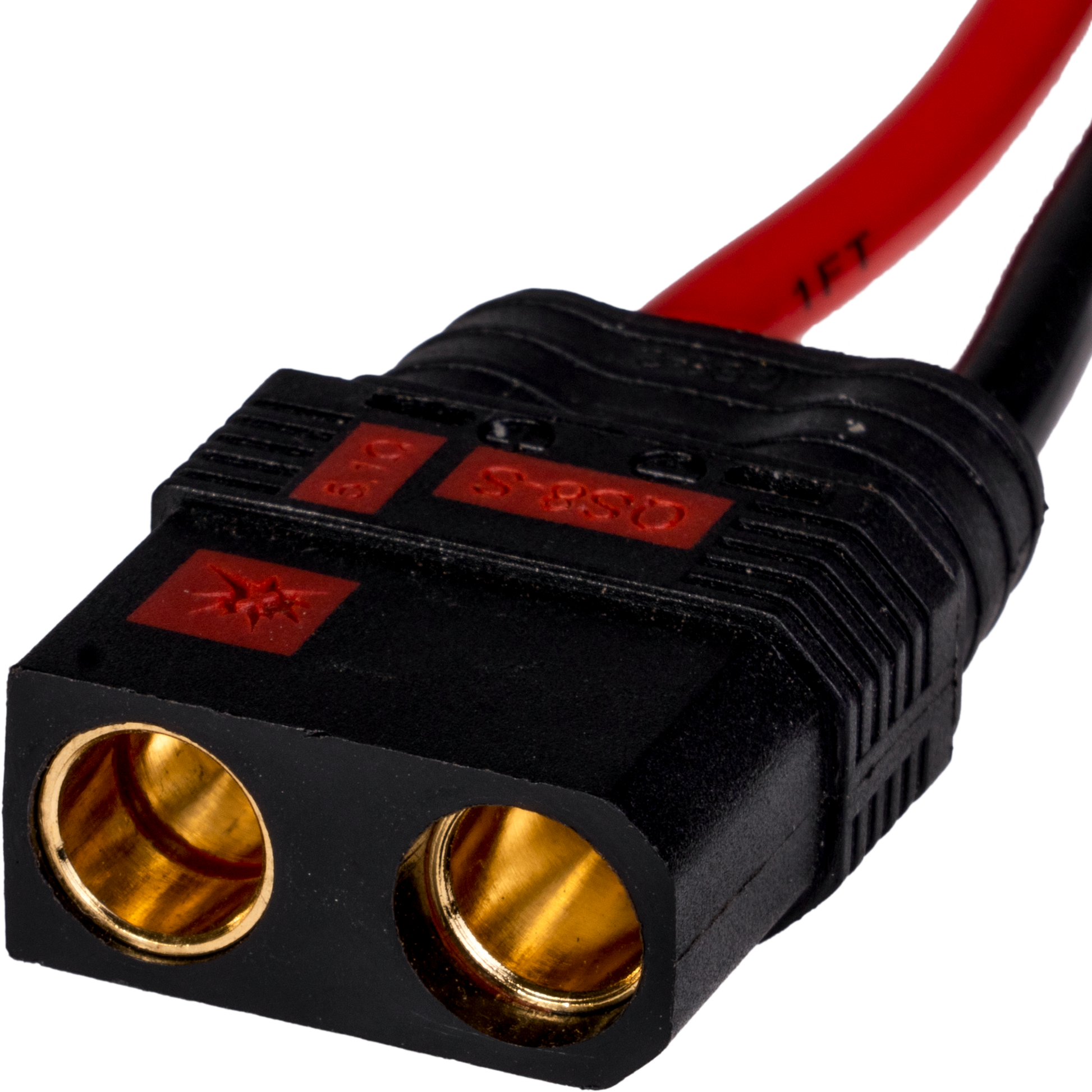

For XT90, QS8 and QS10 gives
constant charging of the capacitors on ESC and allows the battery to be connected without Sраrкs on your ESC when you first plug in.-The design also provides no chance of incorrect polarity connection.
See Chart Below for current capabilities
Work in progress .. Sorry :)
XT Connectors
QS
Barrel
Aviation
XLR

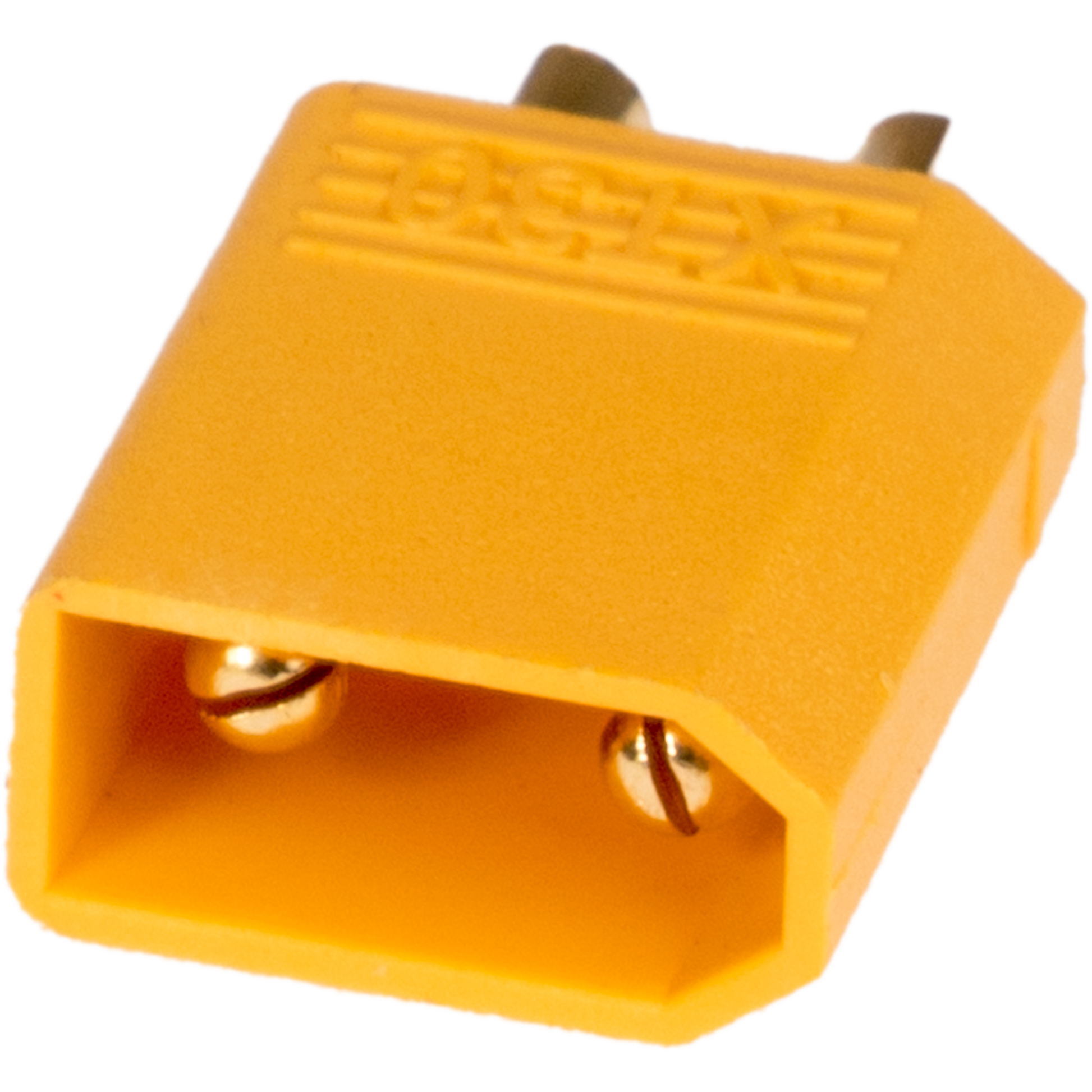

XT30 Male 30 amps
XT30 Female 30 Amps
QS-9 Male 150 amps
QS-9 Female Antispark 150 amps

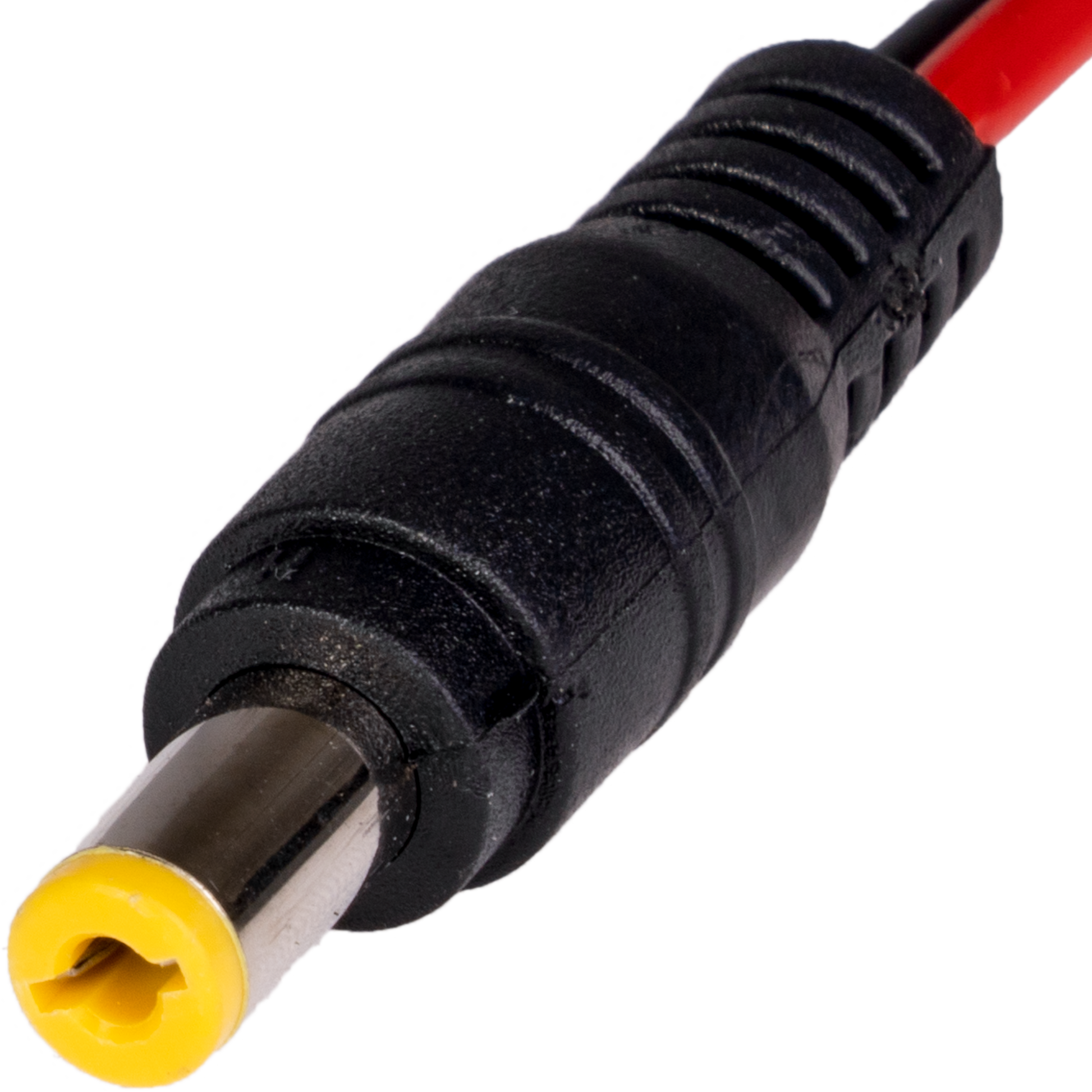

5.5.x 2.1 4 amps

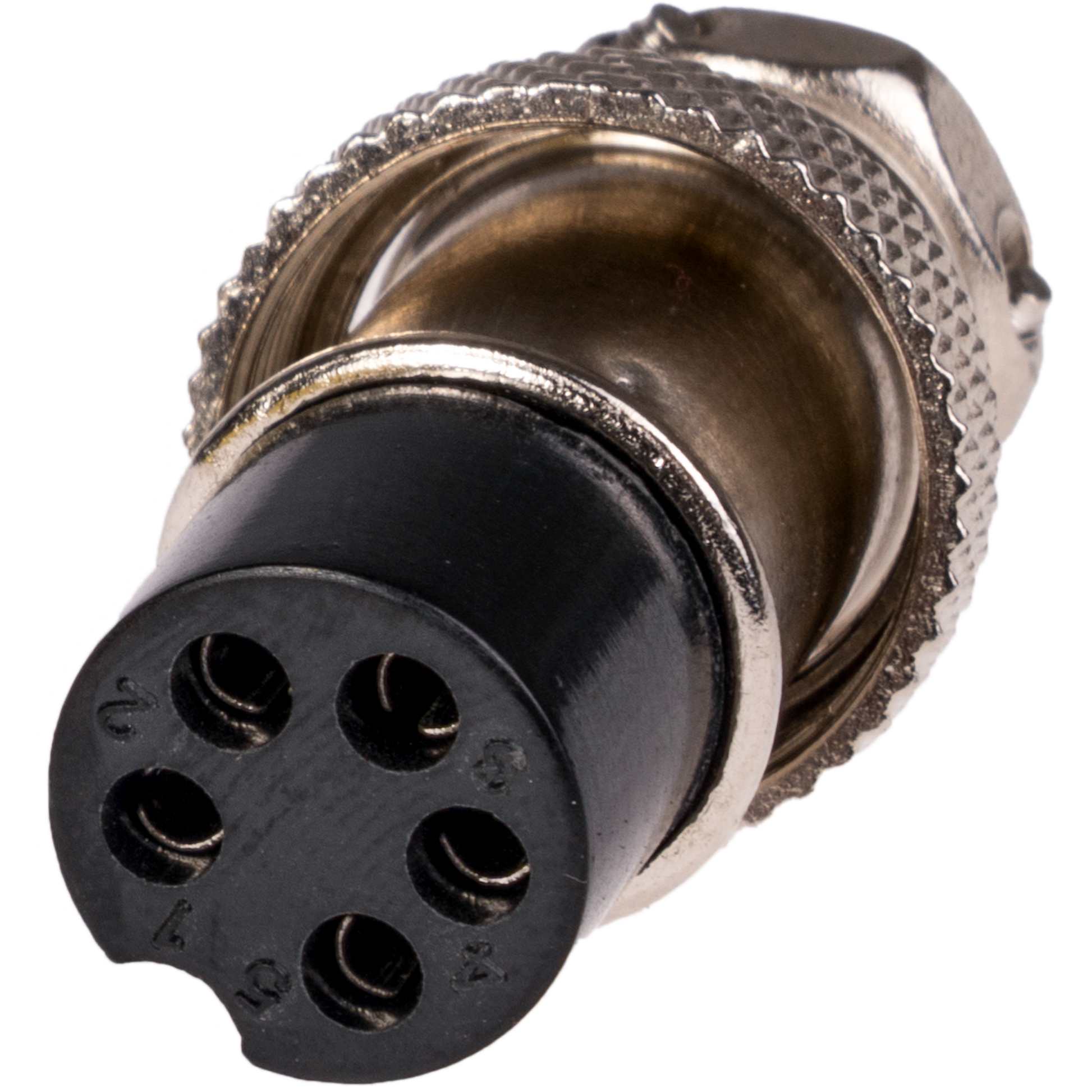

GX16-5
GX12-3
XLR Male
Charger
Battery
Controller/ Charger
Large battery builds
Evolve GTX
Begode 100v, Inmotion 100v, Sherman 100v (1,2+; 4,5-)
Inmotion v11, V8?
ONYX charger; Juiced charger
N/A Need PIC
N/A Need PIC

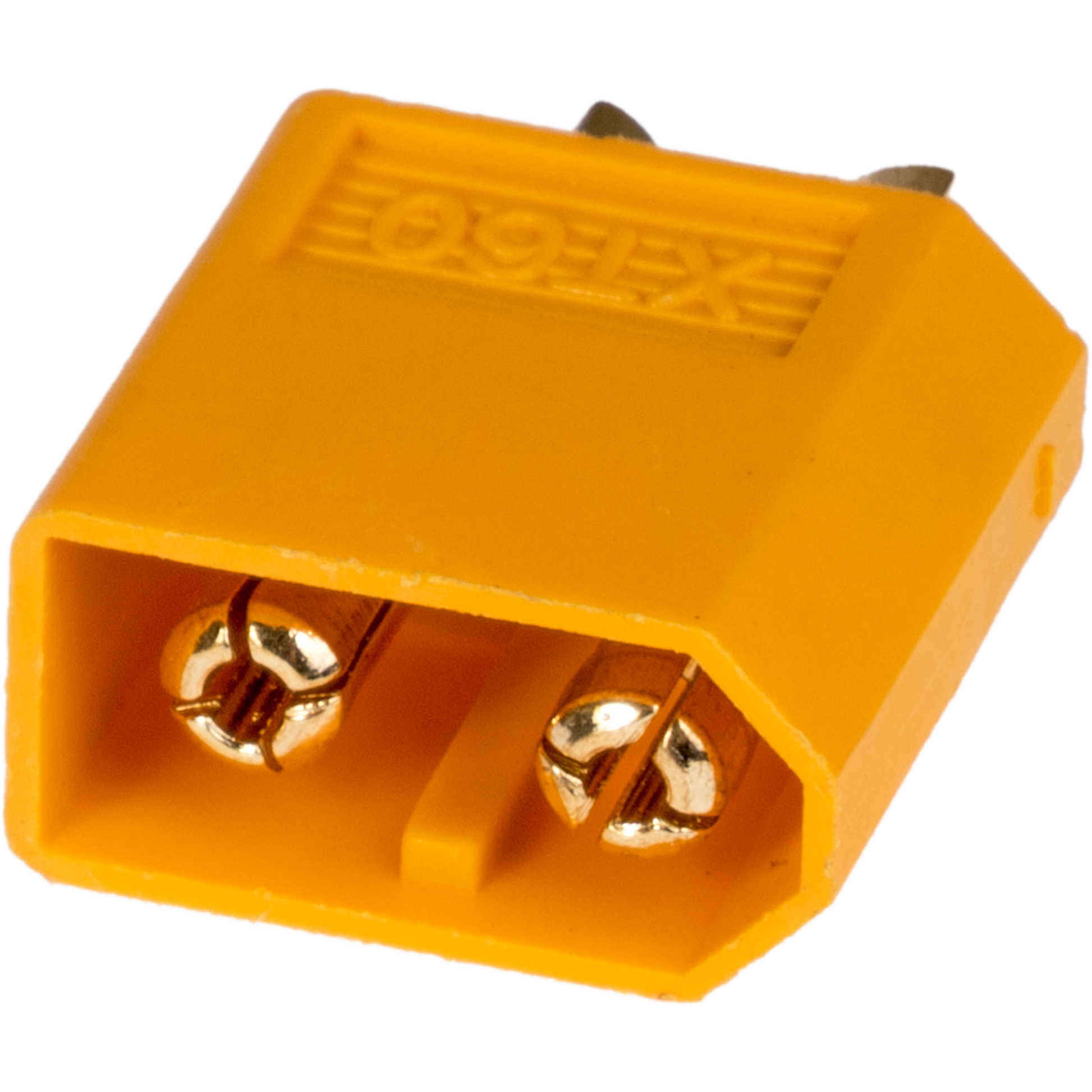

XT60 Male 60 amps
XT60 Female 60 amps
QS10 Male 180 amps
QS10 Female 180 amps

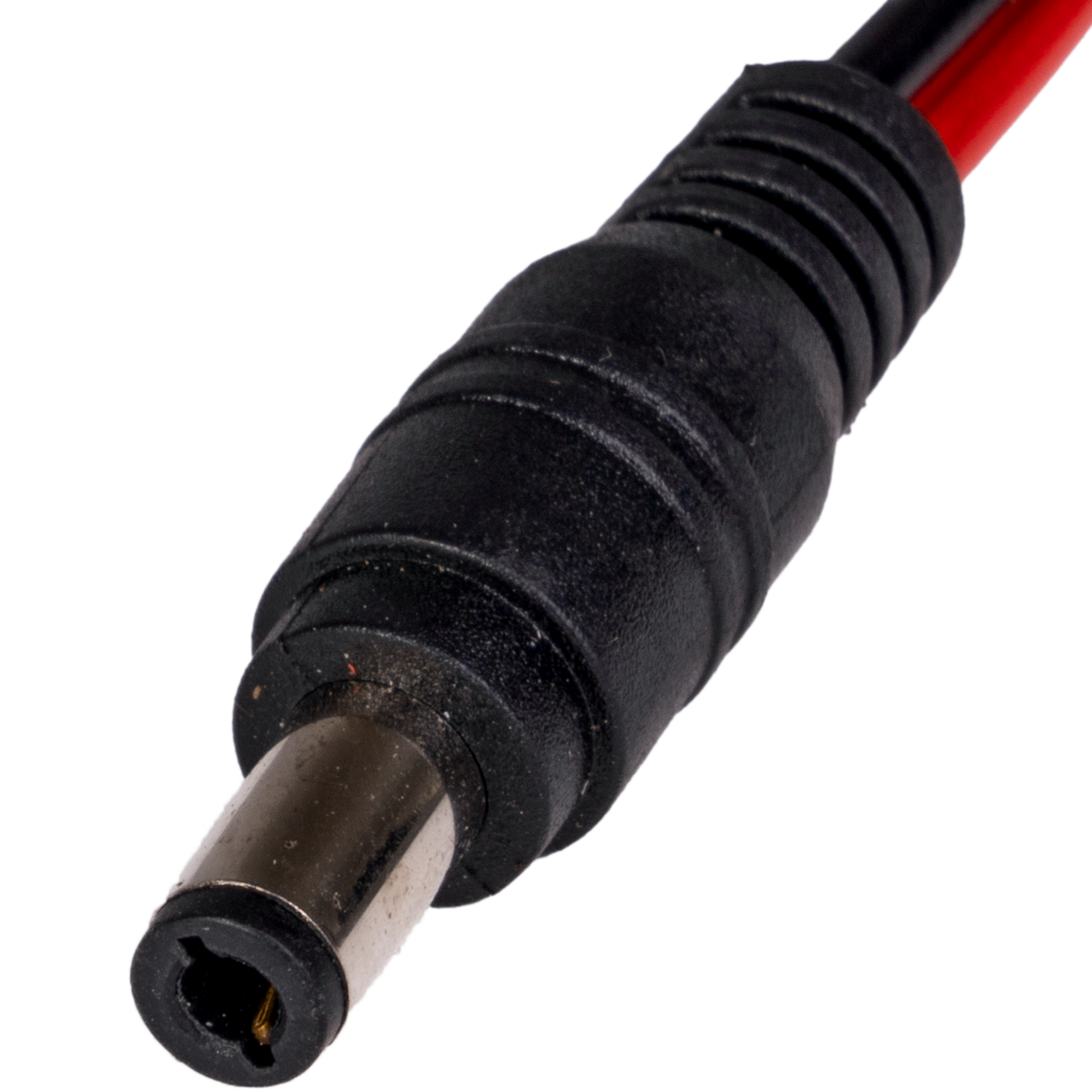

5.5.x 2.5 4 amps
GX-16-6

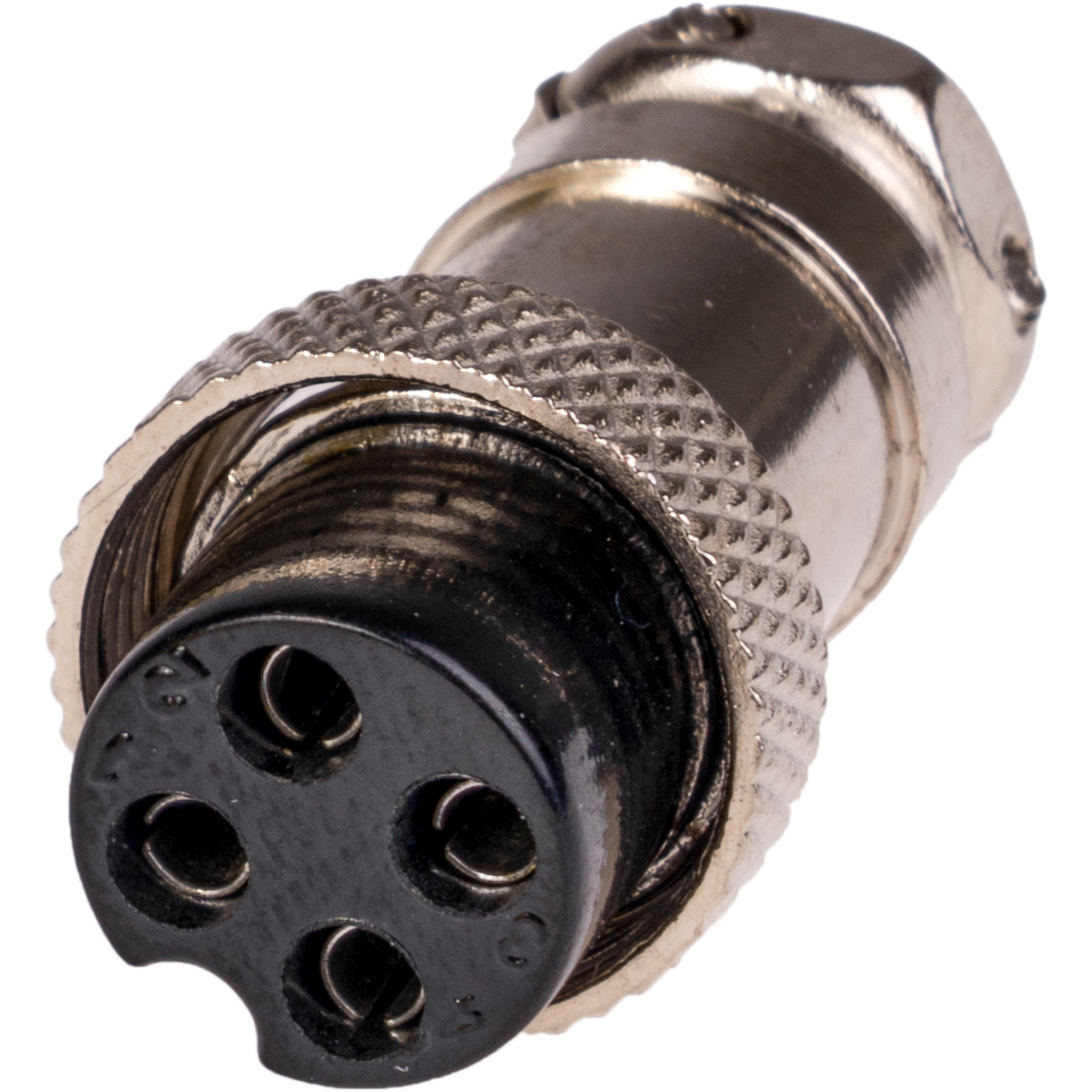

GX16-4

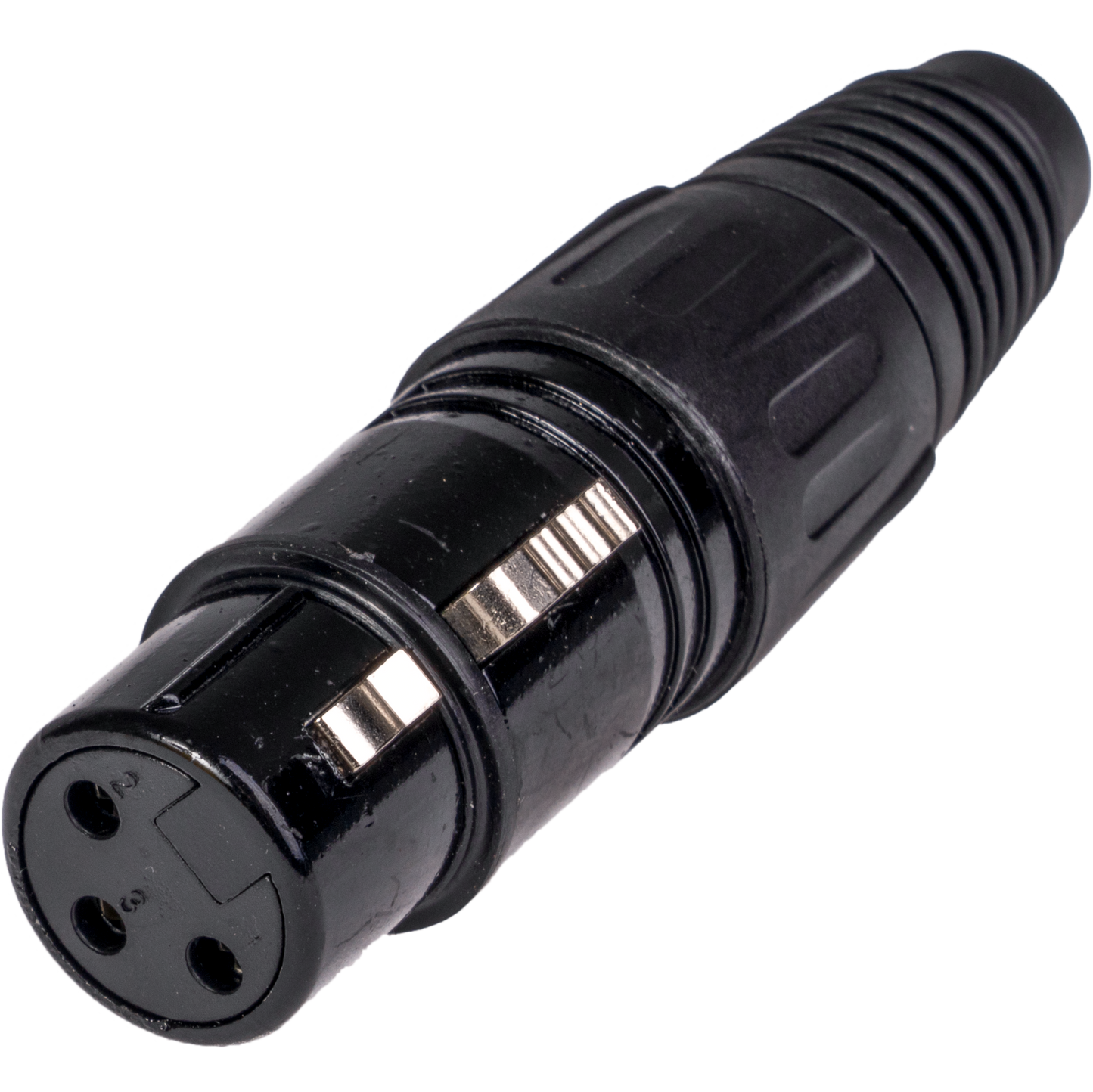

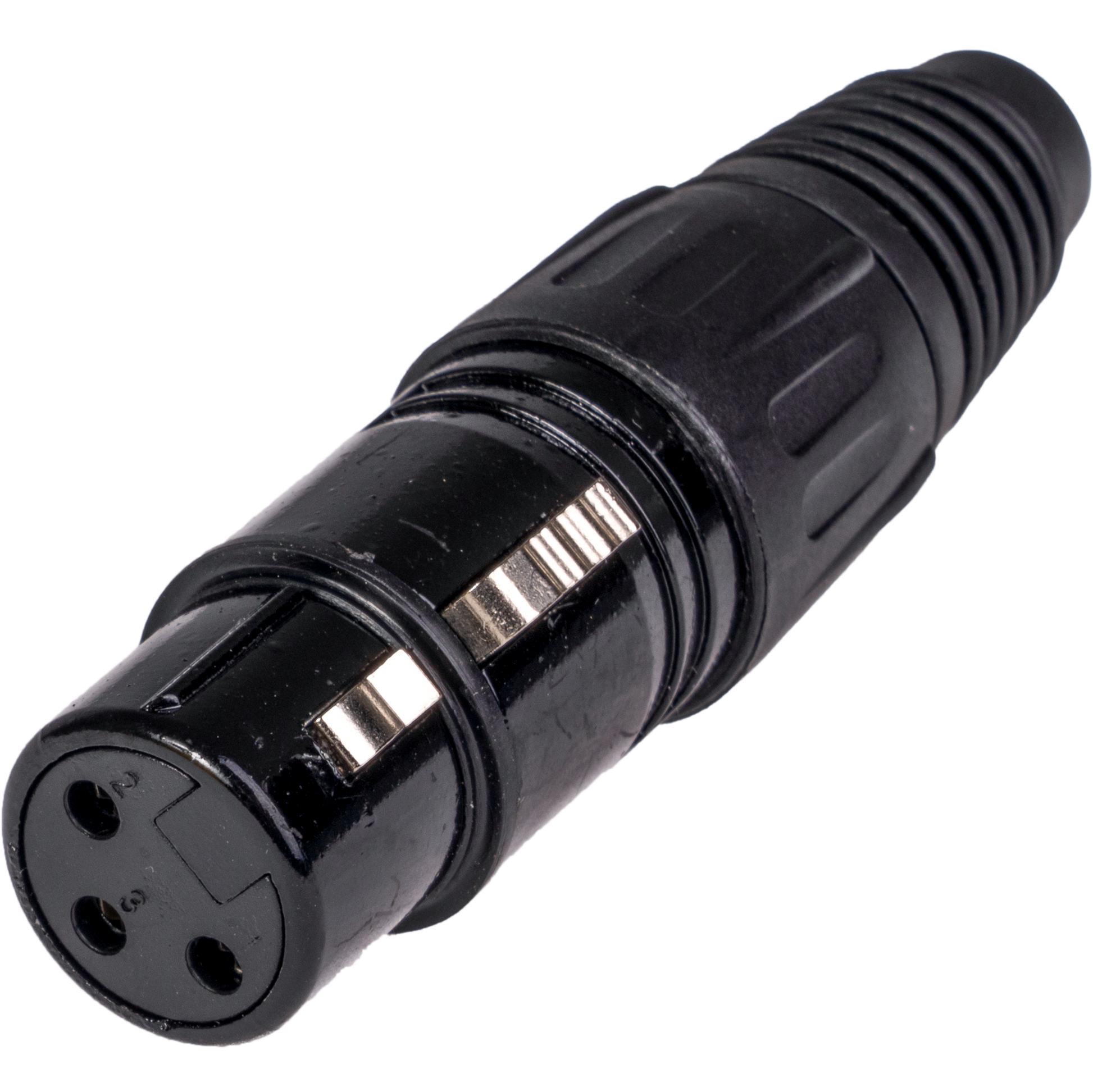

XLR Female
Charger
Battery
Verreal Board
Kingsong S22, Inmotion V13
Begode 84v; Master (1,2+ 3,4-)
ONYX Battery
N/A Need PIC
N/A Need PIC
XT90 Male 90 amps

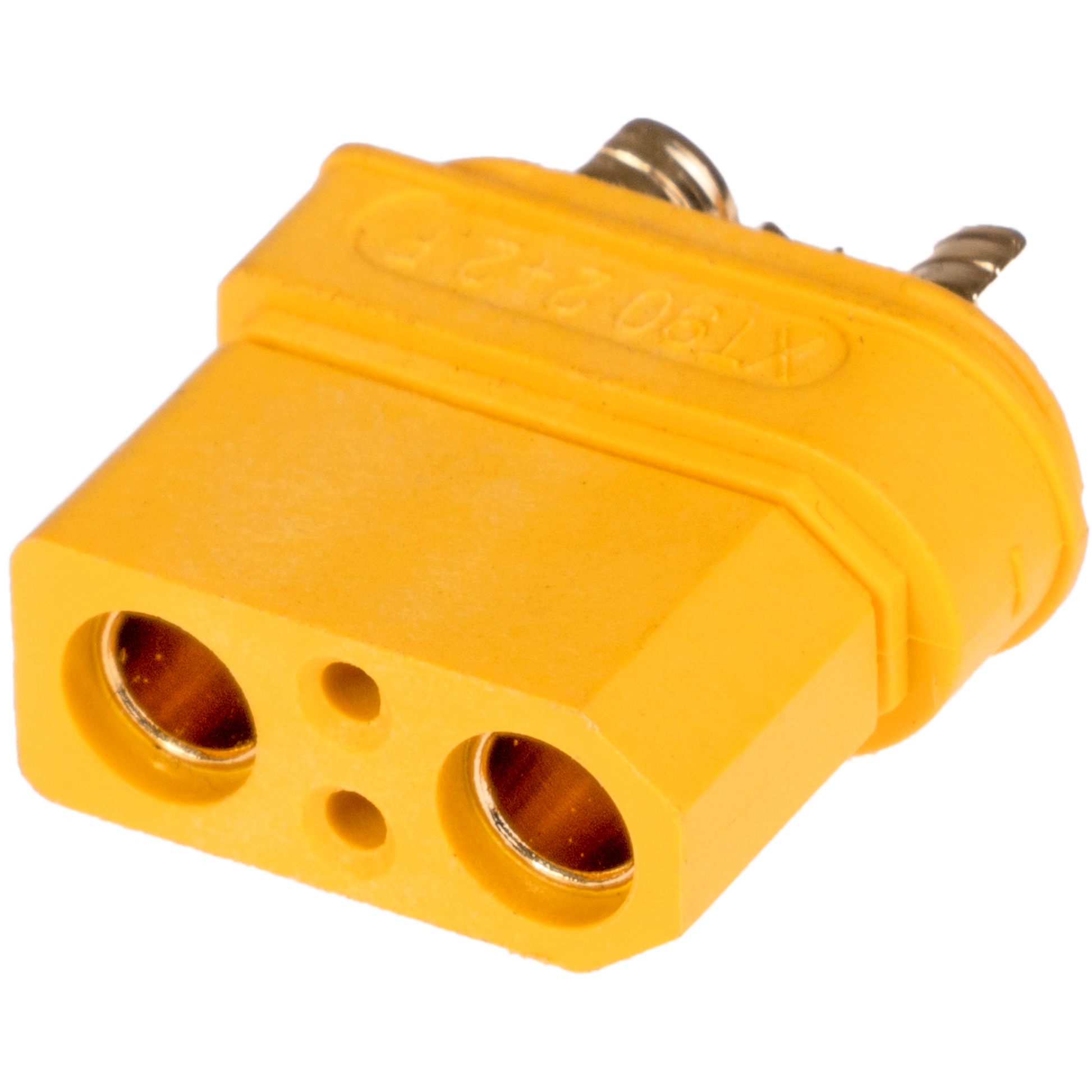

XT90 Female 90 Amps
QS12 Male 250 amps
QS12 Female 250 ampos
8mm Bullet
Charger Cyberx bike
Battery
N/A Need PIC
N/A Need PIC

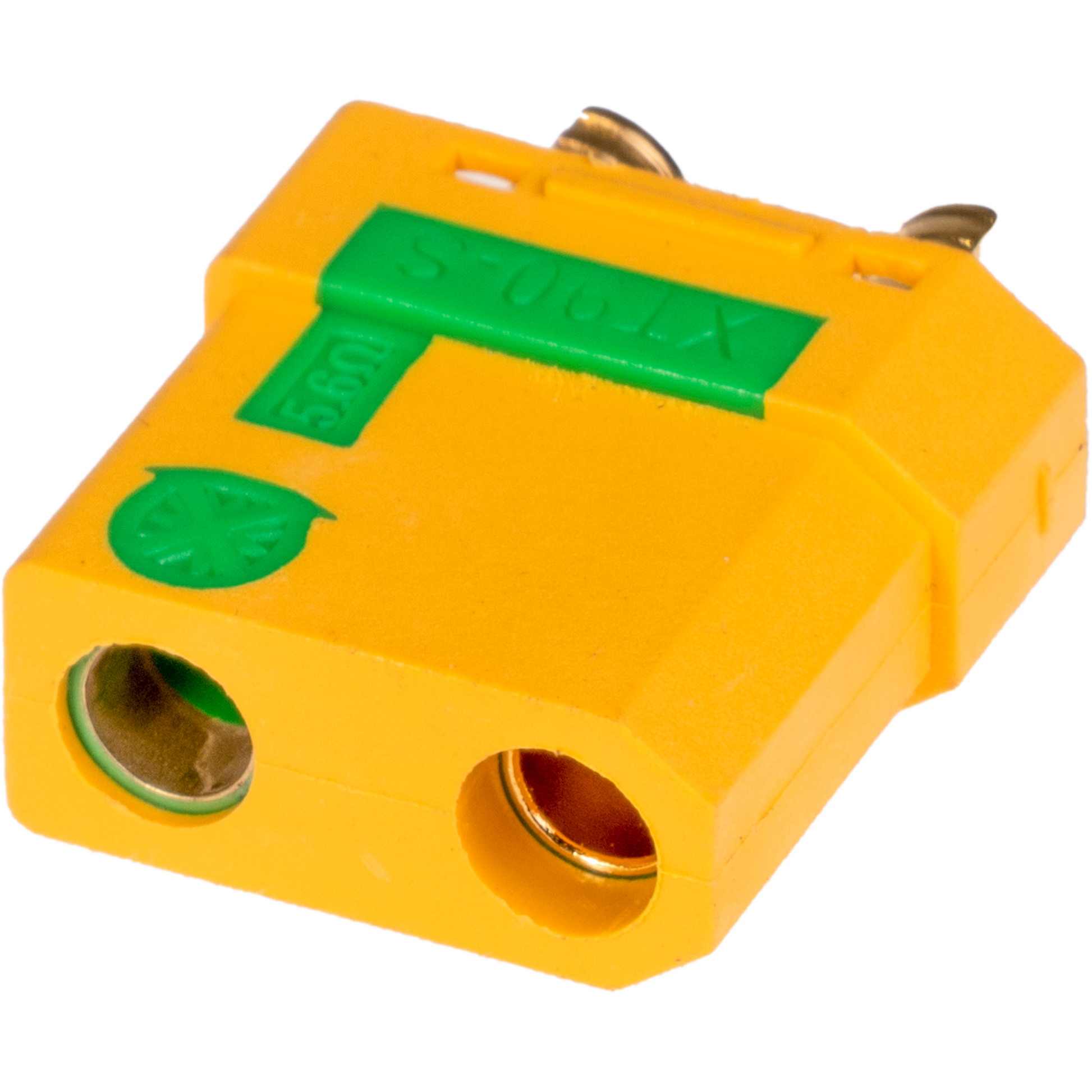

XT90 Female Antispark 90 Amps

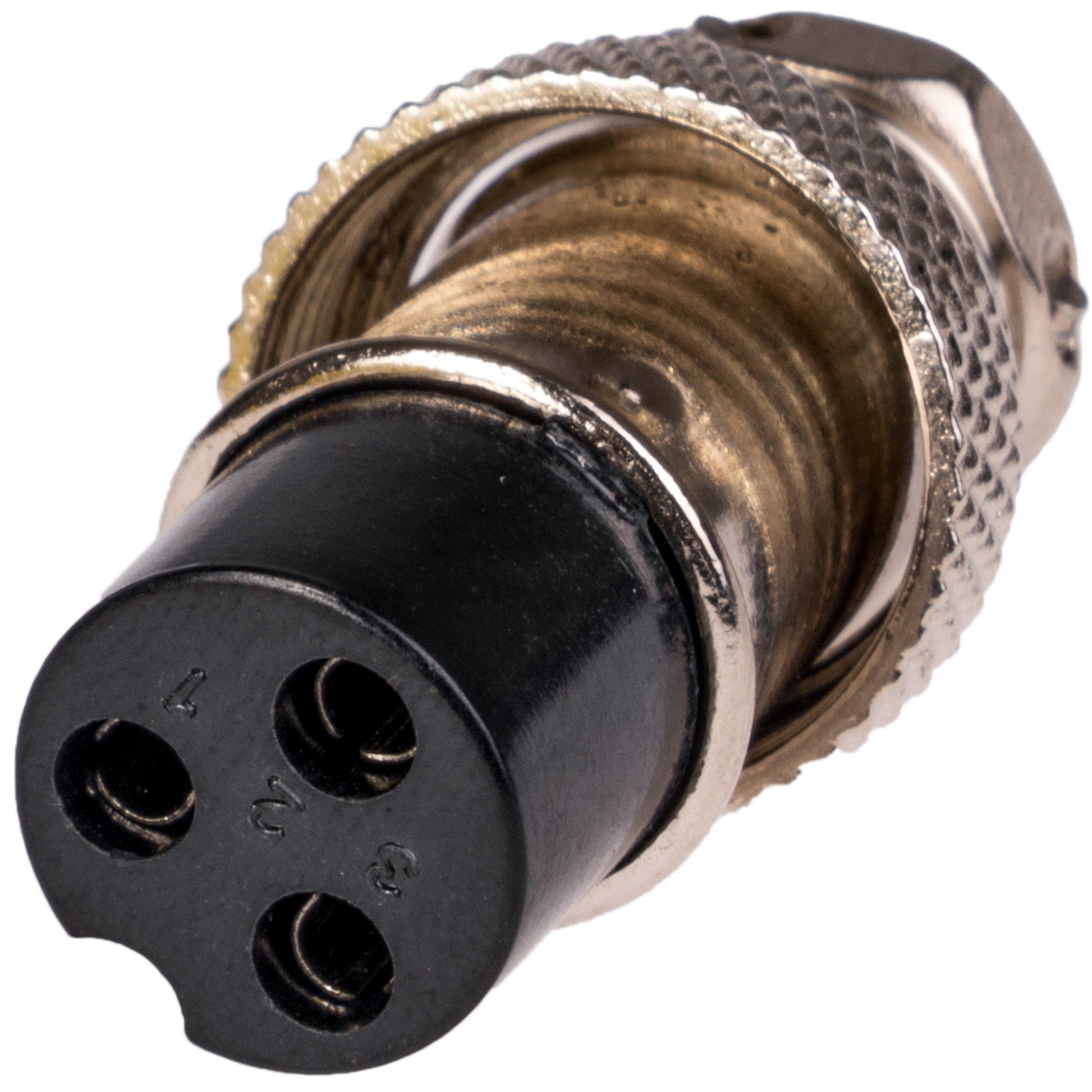

GX16-3
Battery
Backfire G2s

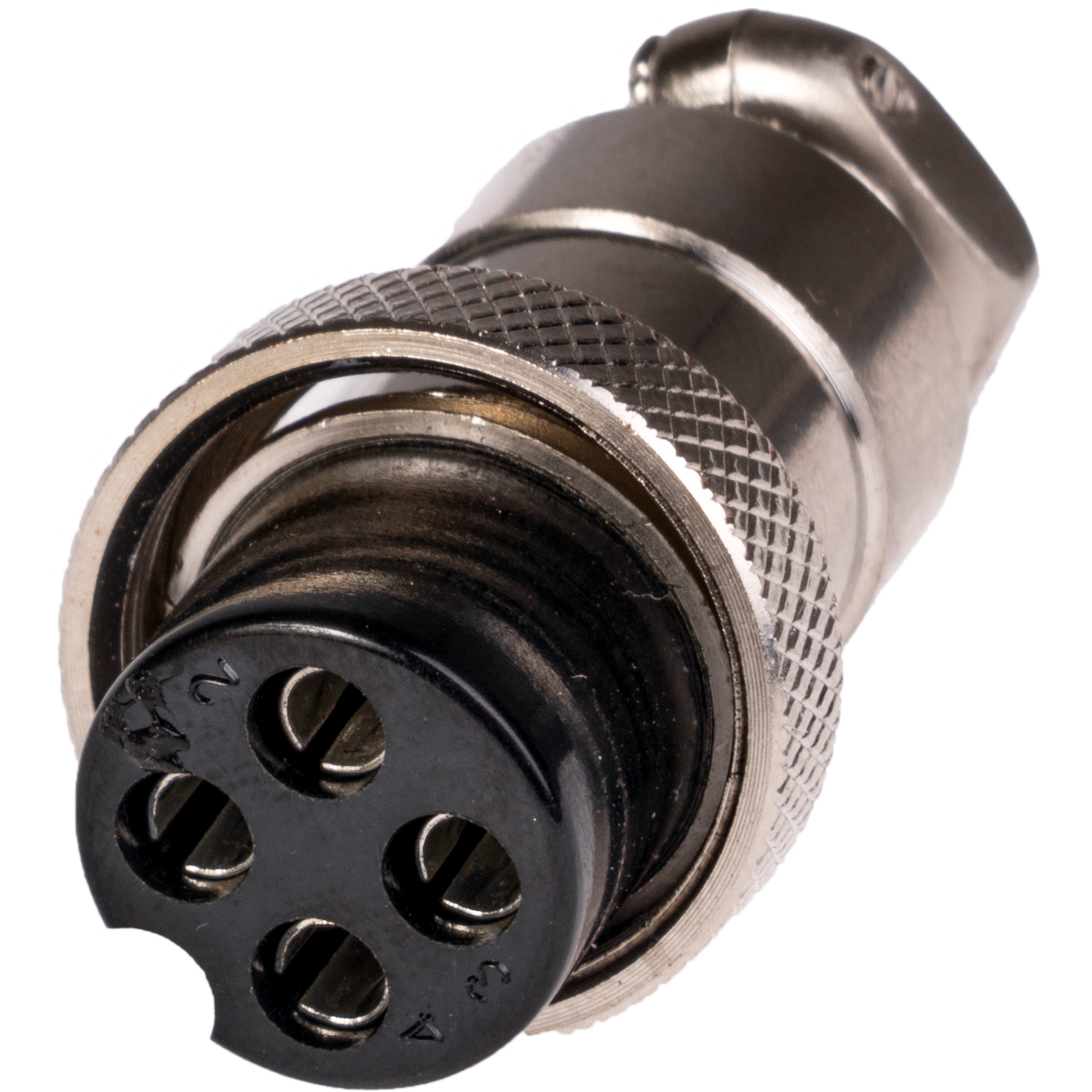

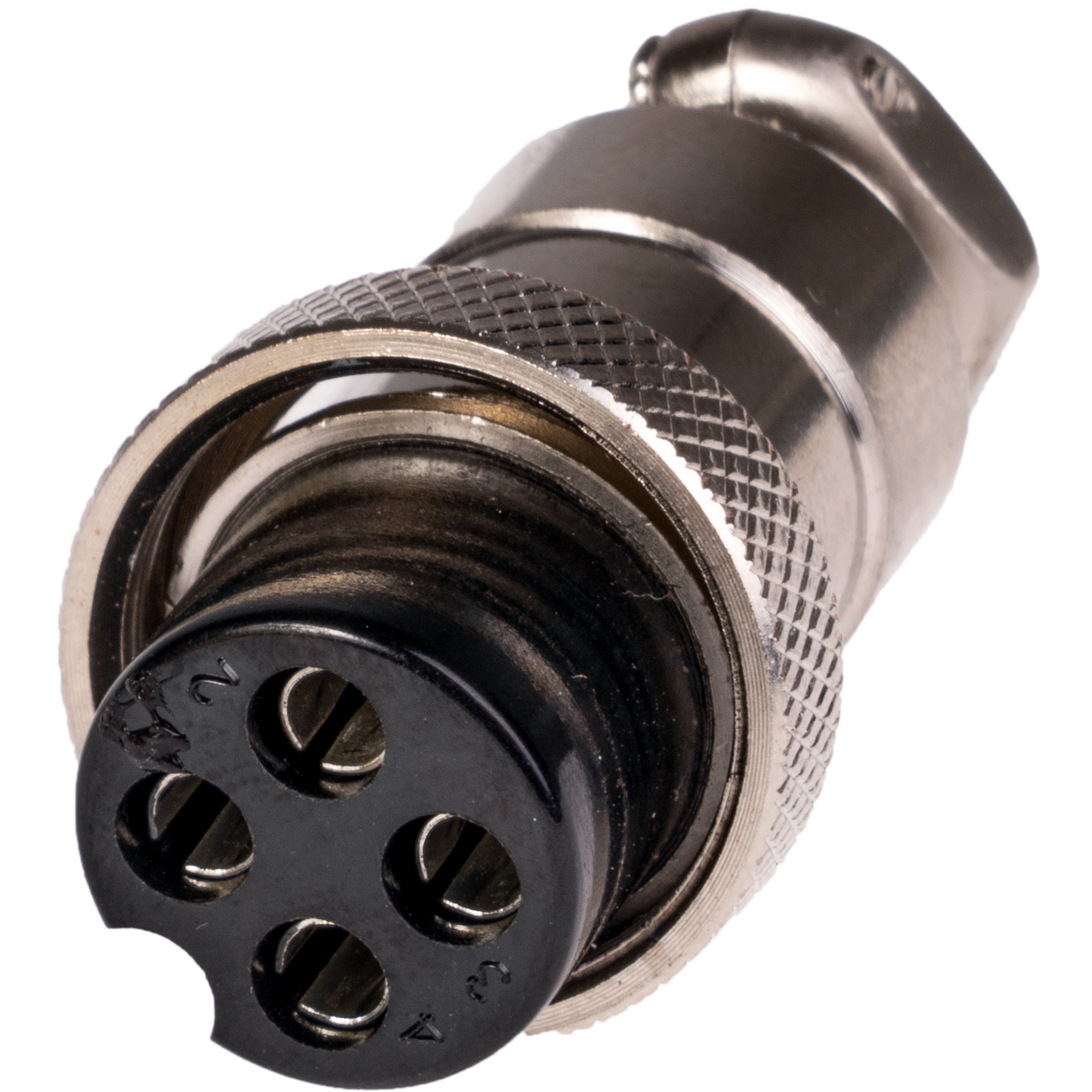

GX20-4
Begode 134.4V chargers (1,2+; 3,4-)
